SISH615ADN-T1-GE3
Transistors - FETs, MOSFETs - Single
- Manufacturer No:
- SISH615ADN-T1-GE3
- Manufacture:
- Vishay / Siliconix
- Package:
- PowerPAK® 1212-8SH
- Datasheet:
- SISH615ADN-T1-GE3
- Description:
- MOSFET P-CHAN 20 V POWERPAK 1212
In Stock
5369 pcs On sales
$0
Product Parameter
- FET Feature
- -
- Current - Continuous Drain (Id) @ 25°C
- 22.1A (Ta), 35A (Tc)
- Part Status
- Active
- Drive Voltage (Max Rds On, Min Rds On)
- 2.5V, 10V
- Mounting Type
- Surface Mount
- Package / Case
- PowerPAK® 1212-8SH
- Vgs(th) (Max) @ Id
- 1.5V @ 250µA
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Rds On (Max) @ Id, Vgs
- 4.4mOhm @ 20A, 10V
- Series
- TrenchFET® Gen III
- Power Dissipation (Max)
- 3.7W (Ta), 52W (Tc)
- FET Type
- P-Channel
- Supplier Device Package
- PowerPAK® 1212-8SH
- Packaging
- Digi-Reel®
- Gate Charge (Qg) (Max) @ Vgs
- 183nC @ 10V
- Vgs (Max)
- ±12V
- Drain to Source Voltage (Vdss)
- 20V
- Technology
- MOSFET (Metal Oxide)
- Input Capacitance (Ciss) (Max) @ Vds
- 5590pF @ 10V
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
SISH615ADN-T1-GE3 Relevant information
SISH101DN-T1-GE3
MOSFET P-CH 30V POWERPAK 1212

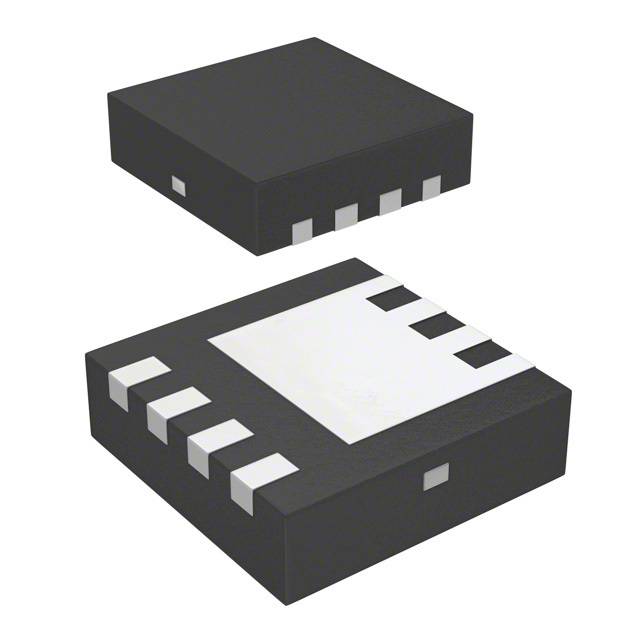

SISH106DN-T1-GE3
