IRF540PBF
Transistors - FETs, MOSFETs - Single
- Manufacturer No:
- IRF540PBF
- Manufacture:
- Vishay / Siliconix
- Package:
- TO-220-3
- Datasheet:
- IRF540PBF
- Description:
- MOSFET N-CH 100V 28A TO-220AB
In Stock
1724 pcs On sales
$1.61
Product Parameter
- Vgs(th) (Max) @ Id
- 4V @ 250µA
- Operating Temperature
- -55°C ~ 175°C (TJ)
- Rds On (Max) @ Id, Vgs
- 77mOhm @ 17A, 10V
- Series
- -
- Power Dissipation (Max)
- 150W (Tc)
- FET Type
- N-Channel
- Supplier Device Package
- TO-220AB
- Packaging
- Tube
- Gate Charge (Qg) (Max) @ Vgs
- 72nC @ 10V
- Vgs (Max)
- ±20V
- Drain to Source Voltage (Vdss)
- 100V
- Technology
- MOSFET (Metal Oxide)
- Input Capacitance (Ciss) (Max) @ Vds
- 1700pF @ 25V
- FET Feature
- -
- Current - Continuous Drain (Id) @ 25°C
- 28A (Tc)
- Part Status
- Active
- Drive Voltage (Max Rds On, Min Rds On)
- 10V
- Mounting Type
- Through Hole
- Package / Case
- TO-220-3
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
IRF540PBF Relevant information
IRF510
MOSFET N-CH 100V 5.6A TO-220AB

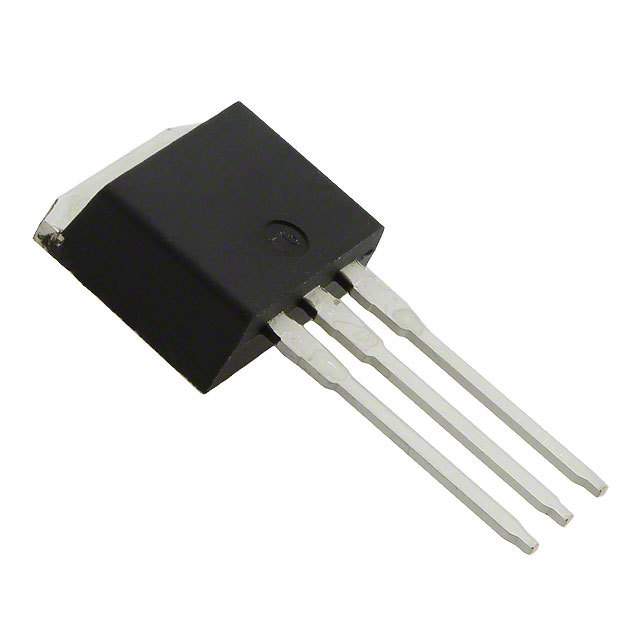

IRF510L
