T63YB502KT20
Trimmer Potentiometers
- Manufacturer No:
- T63YB502KT20
- Manufacture:
- Vishay / Sfernice
- Datasheet:
- T63YB502KT20
- Description:
- TRIMMER 5K OHM 0.25W PC PIN TOP
In Stock
496 pcs On sales
$3.58
Product Parameter
- Resistance
- 5 kOhms
- Part Status
- Active
- Mounting Type
- Through Hole
- Power (Watts)
- 0.25W, 1/4W
- Adjustment Type
- Top Adjustment
- Number of Turns
- 15
- Size / Dimension
- Rectangular - 0.268" x 0.197" Face x 0.268" H (6.80mm x 5.00mm x 6.80mm)
- Termination Style
- PC Pins
- Resistive Material
- Cermet
- Series
- T63
- Temperature Coefficient
- ±100ppm/°C
- Packaging
- Tube
- Tolerance
- ±10%
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
T63YB502KT20 Relevant information

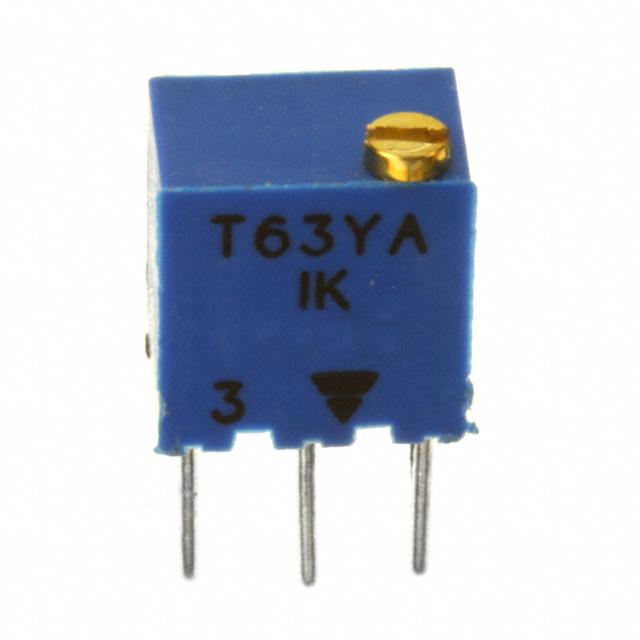

T63YA102KT20
TRIMMER 1K OHM 0.25W PC PIN TOP

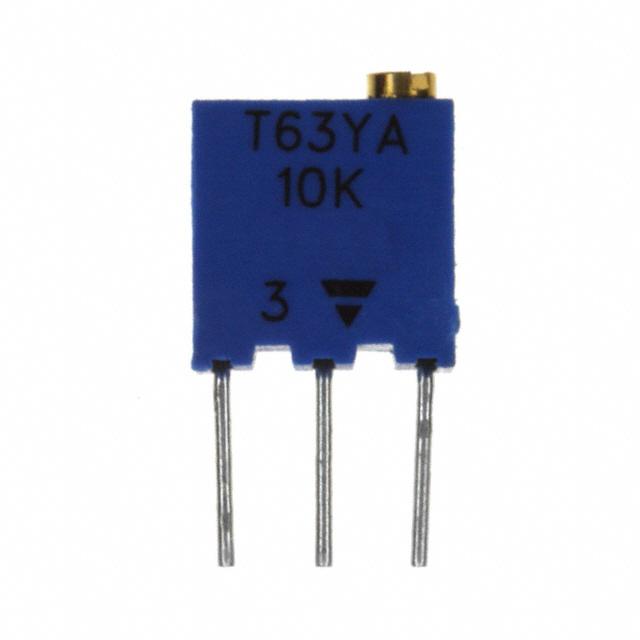

T63YA103KT20
TRIMMER 10K OHM 0.25W PC PIN TOP

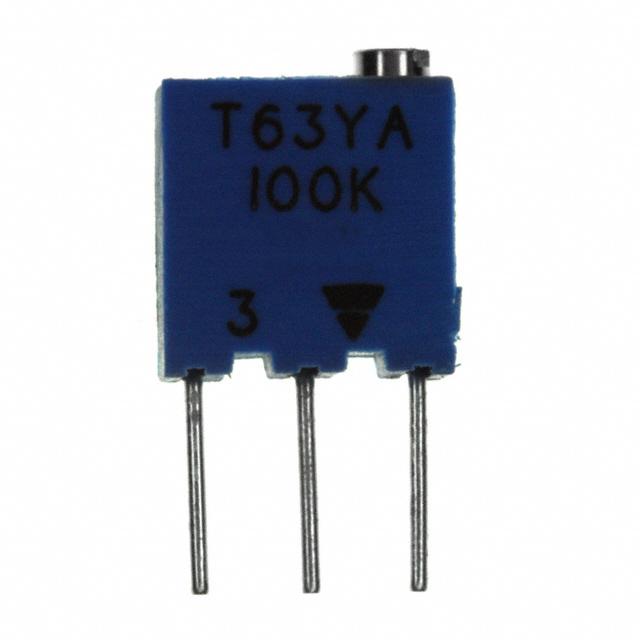

T63YA104KT20
TRIMMER 100KOHM 0.25W PC PIN TOP

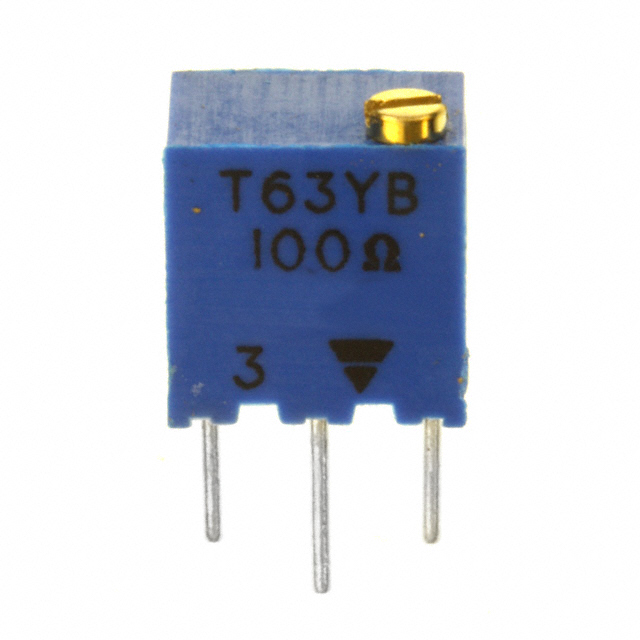

T63YB101KT20
TRIMMER 100 OHM 0.25W PC PIN TOP
T63YB102KT20
TRIMMER 1K OHM 0.25W PC PIN TOP

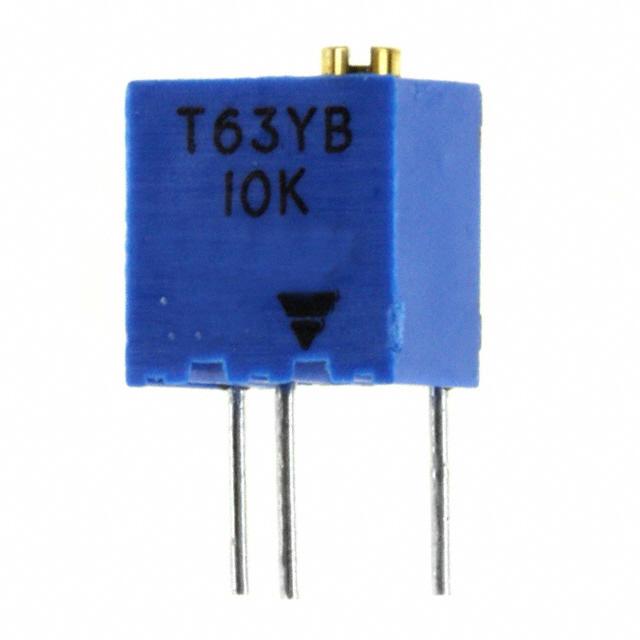

T63YB103KT20
