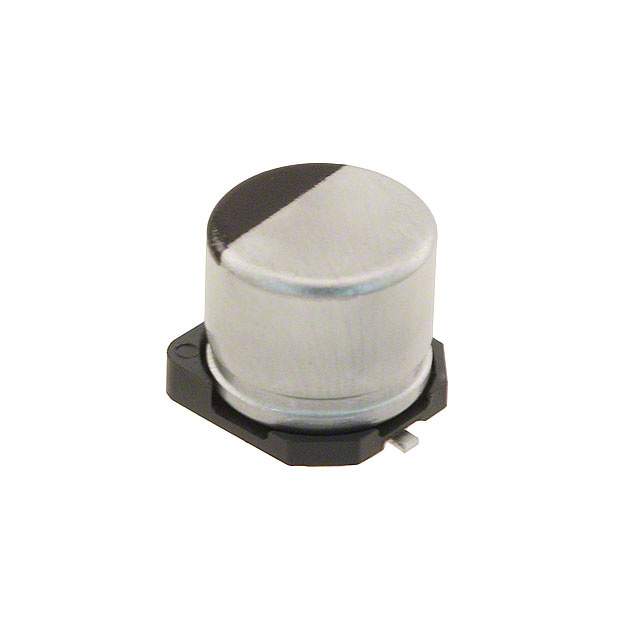

HHXA350ARA470MF61G
Aluminum - Polymer Capacitors
- Manufacturer No:
- HHXA350ARA470MF61G
- Manufacture:
- United Chemi-Con
- Package:
- Radial, Can - SMD
- Datasheet:
- HHXA350ARA470MF61G
- Description:
- CAP ALUM POLY HYB 47UF 35V SMD
In Stock
26257 pcs On sales
$0
Product Parameter
- Voltage - Rated
- 35V
- Type
- Hybrid
- Lifetime @ Temp.
- 4000 Hrs @ 125°C
- Series
- HXA
- Size / Dimension
- 0.248" Dia (6.30mm)
- Ratings
- AEC-Q200
- Height - Seated (Max)
- 0.240" (6.10mm)
- Packaging
- Digi-Reel®
- Operating Temperature
- -55°C ~ 125°C
- Tolerance
- ±20%
- Surface Mount Land Size
- 0.260" L x 0.260" W (6.60mm x 6.60mm)
- Capacitance
- 47µF
- Ripple Current @ High Frequency
- 900mA @ 100kHz
- Part Status
- Active
- ESR (Equivalent Series Resistance)
- 60mOhm
- Applications
- Automotive
- Lead Spacing
- -
- Mounting Type
- Surface Mount
- Package / Case
- Radial, Can - SMD
