TPCA8026(TE12L,Q,M
Transistors - FETs, MOSFETs - Single
- Manufacturer No:
- TPCA8026(TE12L,Q,M
- Manufacture:
- Toshiba Semiconductor and Storage
- Package:
- 8-PowerVDFN
- Datasheet:
- TPCA8026(TE12L,Q,M
- Description:
- MOSFET N-CH 30V 45A 8-SOP ADV
In Stock
477 pcs On sales
$2.03
Product Parameter
- Packaging
- Cut Tape (CT)
- Gate Charge (Qg) (Max) @ Vgs
- 113nC @ 10V
- Vgs (Max)
- ±20V
- Drain to Source Voltage (Vdss)
- 30V
- Technology
- MOSFET (Metal Oxide)
- Input Capacitance (Ciss) (Max) @ Vds
- 4200pF @ 10V
- FET Feature
- -
- Current - Continuous Drain (Id) @ 25°C
- 45A (Ta)
- Part Status
- Discontinued at Digi-Key
- Drive Voltage (Max Rds On, Min Rds On)
- 4.5V, 10V
- Mounting Type
- Surface Mount
- Package / Case
- 8-PowerVDFN
- Vgs(th) (Max) @ Id
- 2.5V @ 1mA
- Operating Temperature
- 150°C (TJ)
- Rds On (Max) @ Id, Vgs
- 2.2mOhm @ 23A, 10V
- Series
- U-MOSIV
- Power Dissipation (Max)
- 1.6W (Ta), 45W (Tc)
- FET Type
- N-Channel
- Supplier Device Package
- 8-SOP Advance (5x5)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
TPCA8026(TE12L,Q,M Relevant information
TPCA8003-H(TE12LQM
MOSFET N-CH 30V 35A SOP-8 ADV
TPCA8005-H(TE12LQM
MOSFET N-CH 30V 27A SOP-8 ADV

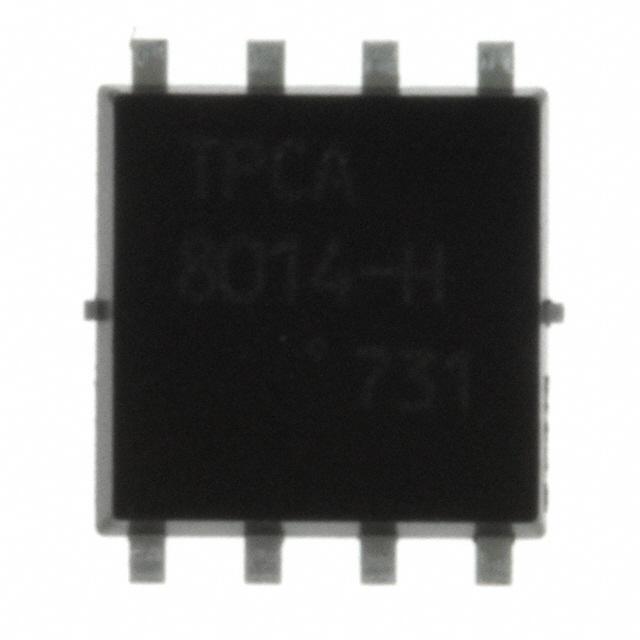

TPCA8007-H(TE12L,Q
MOSFET N-CH 100V 20A 8-SOPA

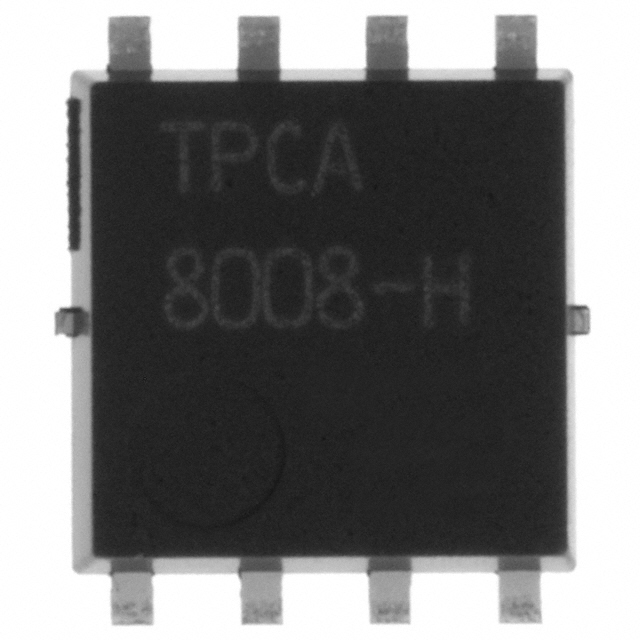

TPCA8008-H(TE12L,Q
