TLP152(TPL,E
Isolators - Gate Drivers
- Manufacturer No:
- TLP152(TPL,E
- Manufacture:
- Toshiba Semiconductor and Storage
- Package:
- 6-SOIC (0.179", 4.55mm Width), 5 Leads
- Datasheet:
- TLP152(TPL,E
- Description:
- OPTOISO 3.75KV GATE DRIVER 6SO-5
In Stock
6541 pcs On sales
$0
Product Parameter
- Series
- -
- Supplier Device Package
- 6-SO, 5 Lead
- Approvals
- -
- Voltage - Output Supply
- 10V ~ 30V
- Packaging
- Digi-Reel®
- Current - Output High, Low
- 2A, 2A
- Technology
- Optical Coupling
- Pulse Width Distortion (Max)
- 50ns
- Part Status
- Active
- Voltage - Forward (Vf) (Typ)
- 1.57V
- Mounting Type
- Surface Mount
- Current - DC Forward (If) (Max)
- 20mA
- Package / Case
- 6-SOIC (0.179", 4.55mm Width), 5 Leads
- Propagation Delay tpLH / tpHL (Max)
- 145ns, 165ns
- Number of Channels
- 1
- Common Mode Transient Immunity (Min)
- 20kV/µs
- Voltage - Isolation
- 3750Vrms
- Current - Peak Output
- 2.5A
- Operating Temperature
- -40°C ~ 100°C
- Rise / Fall Time (Typ)
- 18ns, 22ns
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
TLP152(TPL,E Relevant information

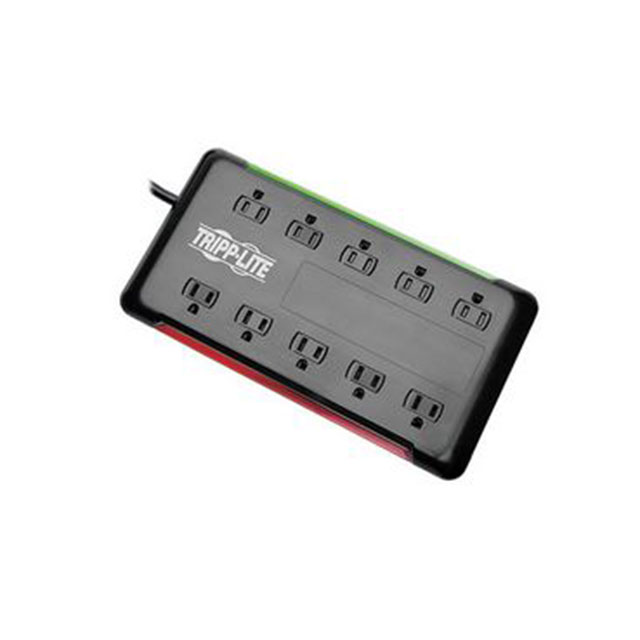

TLP1006B
PROTECT IT 10-OUTLET SURGE PROTE

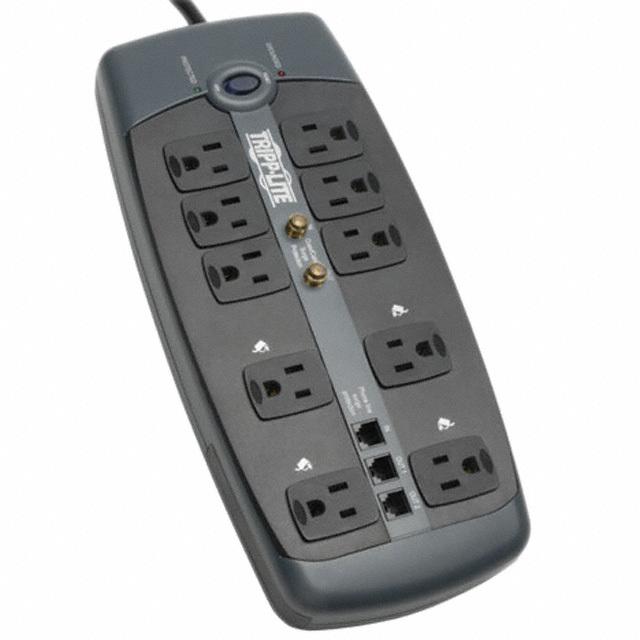

TLP1008TEL
SURGE SUPPRESS 15A 10 OUT 8'CORD

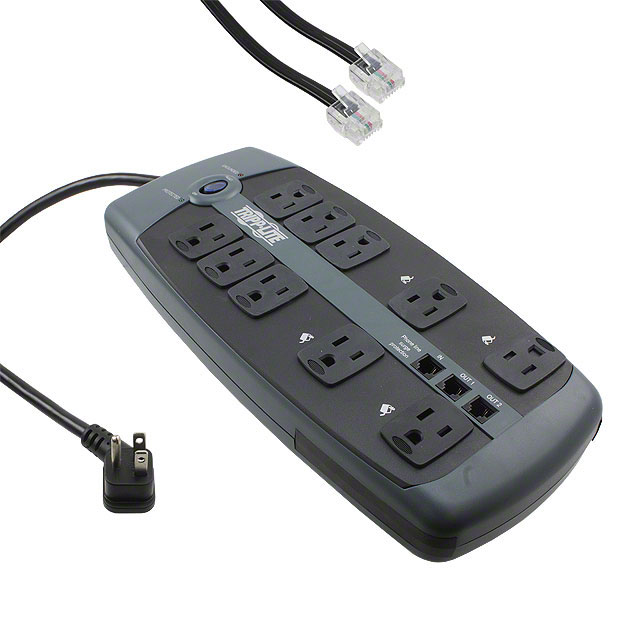

TLP1008TELTV
