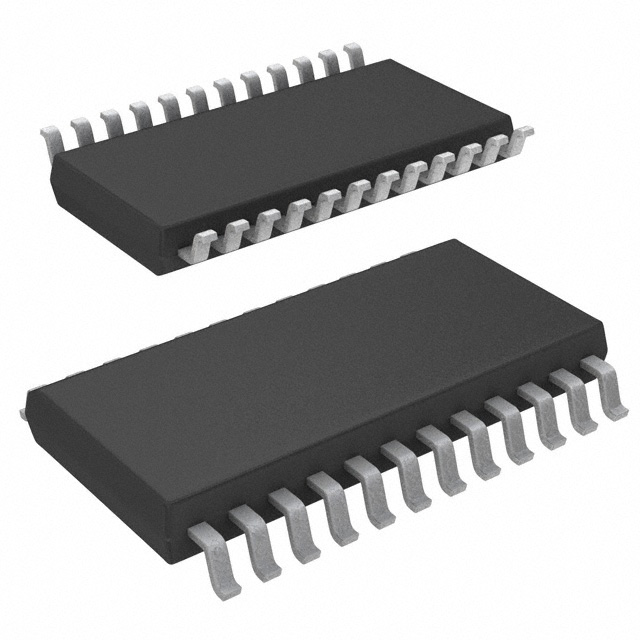

TB6562AFG,8,EL
PMIC - Motor Drivers, Controllers
- Manufacturer No:
- TB6562AFG,8,EL
- Manufacture:
- Toshiba Semiconductor and Storage
- Package:
- 30-BSOP (0.295", 7.50mm Width)
- Datasheet:
- TB6562AFG,8,EL
- Description:
- IC MTR DRV BIPOLAR 10-34V 30SSOP
In Stock
11069 pcs On sales
$3.22
Product Parameter
- Interface
- Parallel
- Motor Type - Stepper
- Bipolar
- Packaging
- Cut Tape (CT)
- Output Configuration
- Half Bridge (4)
- Technology
- DMOS
- Operating Temperature
- -20°C ~ 85°C (TA)
- Part Status
- Active
- Supplier Device Package
- 30-SSOP
- Applications
- General Purpose
- Mounting Type
- Surface Mount
- Package / Case
- 30-BSOP (0.295", 7.50mm Width)
- Voltage - Load
- 10V ~ 34V
- Step Resolution
- 1, 1/2, 1/4
- Current - Output
- 1.5A
- Series
- -
- Voltage - Supply
- 10V ~ 34V
- Function
- Driver - Fully Integrated, Control and Power Stage
- Motor Type - AC, DC
- -
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
TB6562AFG,8,EL Relevant information

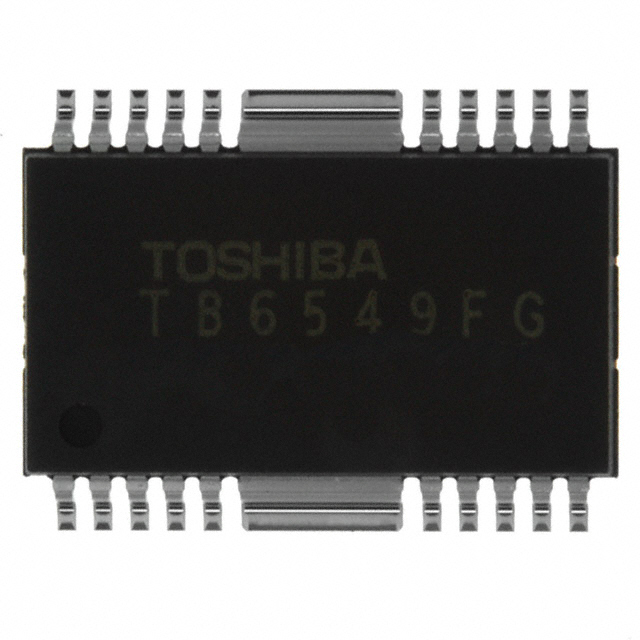

TB6549FG(O,EL)
IC MOTOR DRIVER 10V-27V 20HSOP

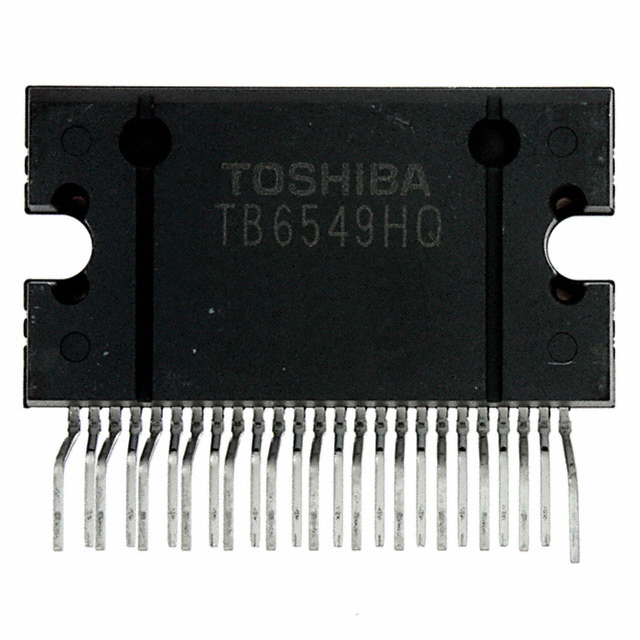

TB6549HQ(O)
