PRD-7DG0-110
Power Relays, Over 2 Amps
- Manufacturer No:
- PRD-7DG0-110
- Manufacture:
- TE Connectivity Potter & Brumfield Relays
- Datasheet:
- PRD-7DG0-110
- Description:
- RELAY GEN PURPOSE DPST 30A 110V
In Stock
17 pcs On sales
$92.23
Product Parameter
- Operate Time
- 40ms
- Release Time
- 20ms
- Series
- PRD
- Mounting Type
- Chassis Mount
- Features
- -
- Coil Insulation
- Class B
- Coil Type
- Non Latching
- Coil Resistance
- 6.05 kOhms
- Packaging
- Bulk
- Contact Material
- Silver Cadmium Oxide (AgCdO)
- Relay Type
- General Purpose
- Switching Voltage
- 240VAC - Nom
- Part Status
- Active
- Termination Style
- Screw Terminal
- Seal Rating
- -
- Must Operate Voltage
- 82.5 VDC
- Coil Current
- 18.2mA
- Must Release Voltage
- 11 VDC
- Coil Voltage
- 110VDC
- Operating Temperature
- -55°C ~ 80°C
- Contact Form
- DPST-NO (2 Form A)
- Contact Rating (Current)
- 30A
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
PRD-7DG0-110 Relevant information

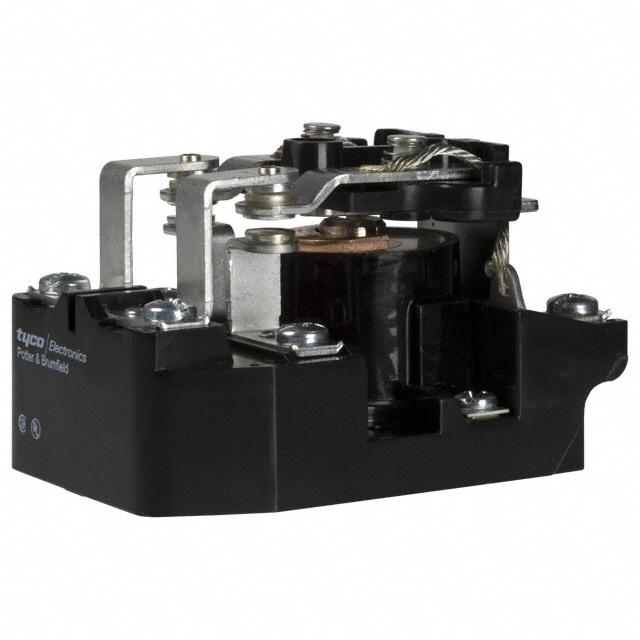

PRD-11AG0-120
