PCF-124D1M,000
Power Relays, Over 2 Amps
- Manufacturer No:
- PCF-124D1M,000
- Manufacture:
- TE Connectivity Potter & Brumfield Relays
- Datasheet:
- PCF-124D1M,000
- Description:
- RELAY GEN PURPOSE SPST 25A 24V
In Stock
0 pcs On sales
$2.38
Product Parameter
- Part Status
- Last Time Buy
- Termination Style
- PC Pin, Quick Connect - 0.250" (6.3mm)
- Seal Rating
- -
- Must Operate Voltage
- 18 VDC
- Coil Current
- 37.5mA
- Must Release Voltage
- 1.2 VDC
- Coil Voltage
- 24VDC
- Operating Temperature
- -30°C ~ 55°C
- Contact Form
- SPST-NO (1 Form A)
- Contact Rating (Current)
- 25A
- Operate Time
- 20ms
- Release Time
- 10ms
- Series
- PCF, OEG
- Mounting Type
- Through Hole
- Features
- -
- Coil Insulation
- -
- Coil Type
- Non Latching
- Coil Resistance
- 640 Ohms
- Packaging
- Tray
- Contact Material
- Silver Cadmium Oxide (AgCdO)
- Relay Type
- General Purpose
- Switching Voltage
- 277VAC, 24VDC - Max
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
PCF-124D1M,000 Relevant information

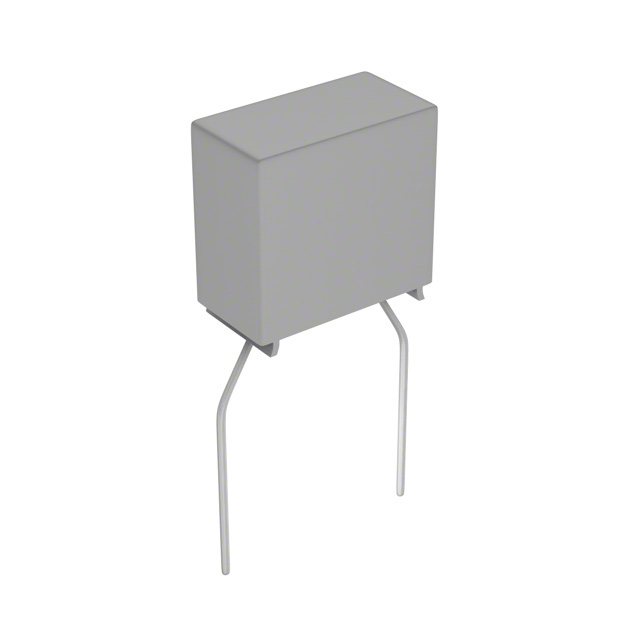

PCF-1-1/2-R
FUSE BRD MNT 1.5A 250VAC 450VDC
PCF-1-R
FUSE BOARD MNT 1A 250VAC 450VDC
PCF-1/2-R
FUSE BRD MNT 500MA 250VAC 450VDC
PCF-105D2M,000
RELAY GEN PURPOSE SPST 25A 5V
PCF-112D1M-2,000
PCF-112D1M-2,000

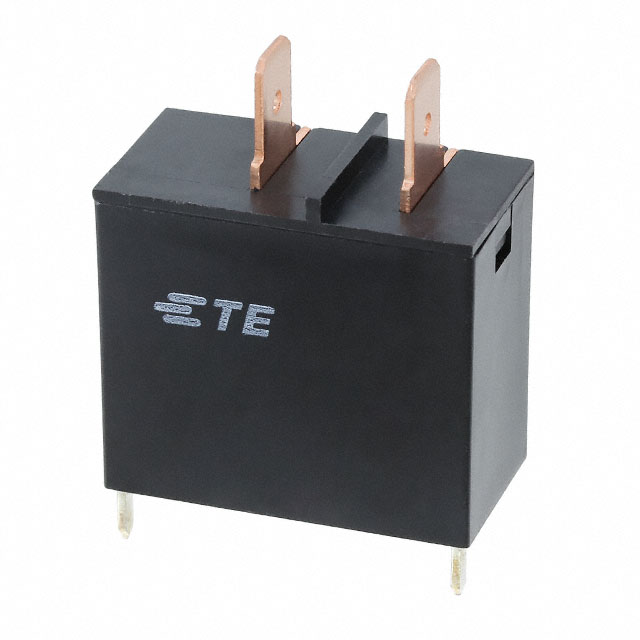

PCF-112D1M,000
