KUHP-5D51-24
Power Relays, Over 2 Amps
- Manufacturer No:
- KUHP-5D51-24
- Manufacture:
- TE Connectivity Potter & Brumfield Relays
- Datasheet:
- KUHP-5D51-24
- Description:
- RELAY GEN PURPOSE SPDT 30A 24V
In Stock
21 pcs On sales
$35.54
Product Parameter
- Seal Rating
- -
- Must Operate Voltage
- 18 VDC
- Coil Current
- 51.0mA
- Must Release Voltage
- -
- Coil Voltage
- 24VDC
- Operating Temperature
- -45°C ~ 70°C
- Contact Form
- SPDT (1 Form C)
- Contact Rating (Current)
- 30A
- Operate Time
- 20ms
- Release Time
- 20ms
- Series
- KUHP
- Mounting Type
- Chassis Mount
- Features
- -
- Coil Insulation
- Class B
- Coil Type
- Non Latching
- Coil Resistance
- 472 Ohms
- Packaging
- Bulk
- Contact Material
- Silver Cadmium Oxide (AgCdO)
- Relay Type
- General Purpose
- Switching Voltage
- 240VAC - Max
- Part Status
- Active
- Termination Style
- Quick Connect - 0.250" (6.3mm)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
KUHP-5D51-24 Relevant information
KUHP-11A11-120
RELAY GEN PURPOSE DPDT 20A 120V
KUHP-11A51-12
RELAY GEN PURPOSE DPDT 20A 12V

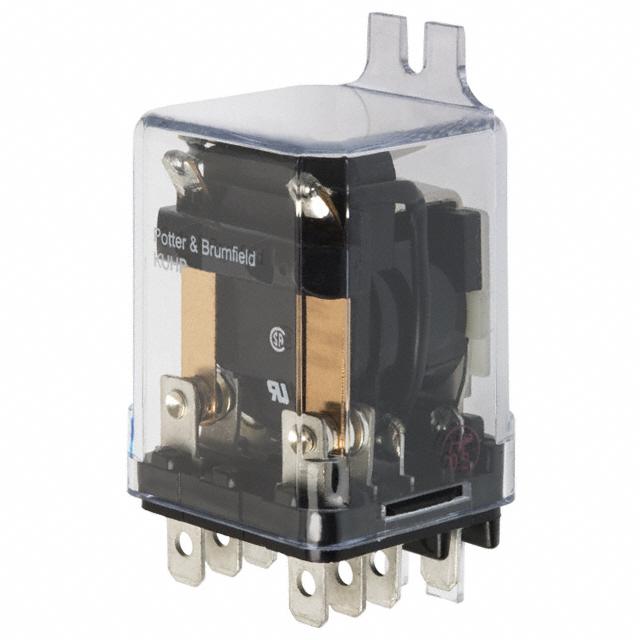

KUHP-11A51-120
RELAY GEN PURPOSE DPDT 20A 120V
KUHP-11A51-24
RELAY GEN PURPOSE DPDT 20A 24V
KUHP-11A51-240
RELAY GEN PURPOSE DPDT 20A 240V

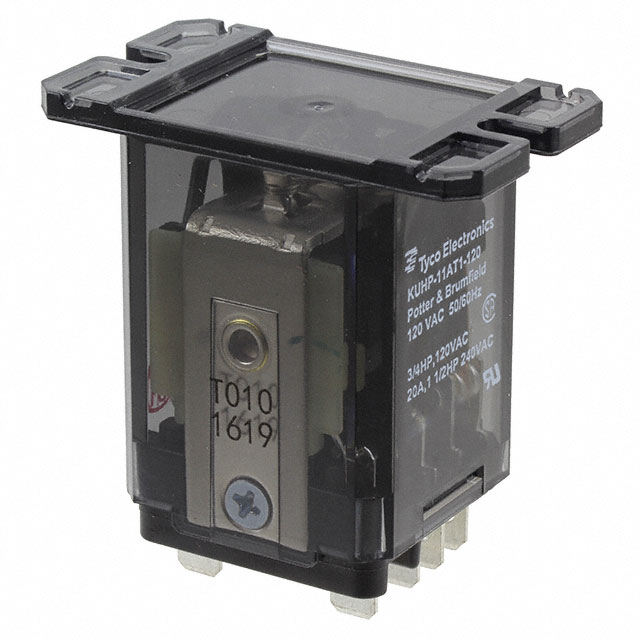

KUHP-11AT1-120
