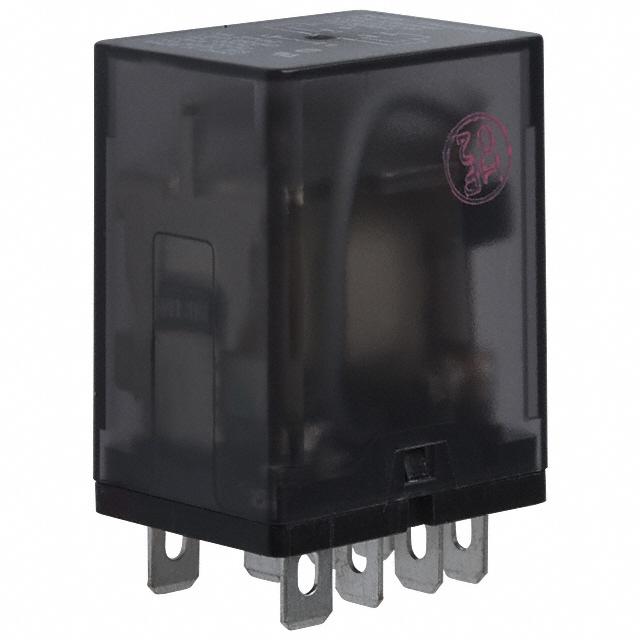

K10P-11DT5-24
Power Relays, Over 2 Amps
- Manufacturer No:
- K10P-11DT5-24
- Manufacture:
- TE Connectivity Potter & Brumfield Relays
- Datasheet:
- K10P-11DT5-24
- Description:
- RELAY GEN PURPOSE DPDT 15A 24V
In Stock
68 pcs On sales
$30.5
Product Parameter
- Relay Type
- General Purpose
- Switching Voltage
- 120VAC - Max
- Part Status
- Active
- Termination Style
- Plug In, Quick Connect - 0.187" (4.7mm)
- Seal Rating
- -
- Must Operate Voltage
- 18 VDC
- Coil Current
- 37.0mA
- Must Release Voltage
- 2.4 VDC
- Coil Voltage
- 24VDC
- Operating Temperature
- -45°C ~ 70°C
- Contact Form
- DPDT (2 Form C)
- Contact Rating (Current)
- 15A
- Operate Time
- 13ms
- Release Time
- 10ms
- Series
- K10
- Mounting Type
- Chassis Mount
- Features
- -
- Coil Insulation
- Class B
- Coil Type
- Non Latching
- Coil Resistance
- 650 Ohms
- Packaging
- Bulk
- Contact Material
- Silver Cadmium Oxide (AgCdO)
