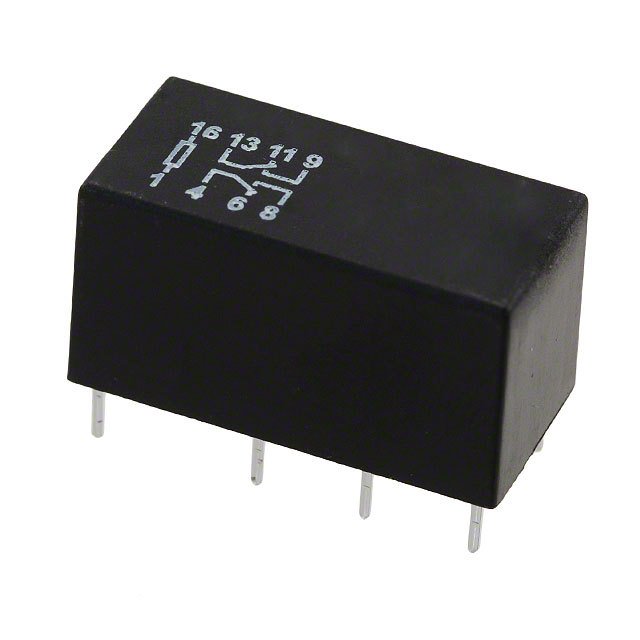

C93432
Signal Relays, Up to 2 Amps
- Manufacturer No:
- C93432
- Manufacture:
- TE Connectivity Potter & Brumfield Relays
- Datasheet:
- C93432
- Description:
- RELAY TELECOM DPDT 2A 12VDC
In Stock
9157 pcs On sales
$3.48
Product Parameter
- Features
- -
- Coil Insulation
- -
- Coil Type
- Non Latching
- Coil Resistance
- 280 Ohms
- Packaging
- Tube
- Contact Material
- Silver Nickel (AgNi), Gold (Au)
- Relay Type
- Telecom
- Switching Voltage
- 250VAC, 220VDC - Max
- Part Status
- Active
- Termination Style
- PC Pin
- Seal Rating
- -
- Must Operate Voltage
- 7.8 VDC
- Coil Current
- 45.8mA
- Must Release Voltage
- 1.2 VDC
- Coil Voltage
- 12VDC
- Operating Temperature
- -55°C ~ 85°C
- Contact Form
- DPDT (2 Form C)
- Contact Rating (Current)
- 2A
- Operate Time
- 5ms
- Release Time
- 3ms
- Series
- MT2, AXICOM
- Mounting Type
- Through Hole
