3-1462037-1
Signal Relays, Up to 2 Amps
- Manufacturer No:
- 3-1462037-1
- Manufacture:
- TE Connectivity Potter & Brumfield Relays
- Datasheet:
- 3-1462037-1
- Description:
- RELAY TELECOM DPDT 2A 4.5VDC
In Stock
1126 pcs On sales
$0
Product Parameter
- Packaging
- Digi-Reel®
- Contact Material
- Palladium (Pd), Ruthenium (Ru), Gold (Au)
- Relay Type
- Telecom
- Switching Voltage
- 250VAC, 220VDC - Max
- Part Status
- Active
- Termination Style
- Gull Wing
- Seal Rating
- Sealed - Hermetically
- Must Operate Voltage
- 3.38 VDC
- Coil Current
- 22.2mA
- Must Release Voltage
- -
- Coil Voltage
- 4.5VDC
- Operating Temperature
- -40°C ~ 85°C
- Contact Form
- DPDT (2 Form C)
- Contact Rating (Current)
- 2A
- Operate Time
- 3ms
- Release Time
- 3ms
- Series
- IM, AXICOM
- Mounting Type
- Surface Mount
- Features
- -
- Coil Insulation
- -
- Coil Type
- Latching, Single Coil
- Coil Resistance
- 203 Ohms
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
3-1462037-1 Relevant information

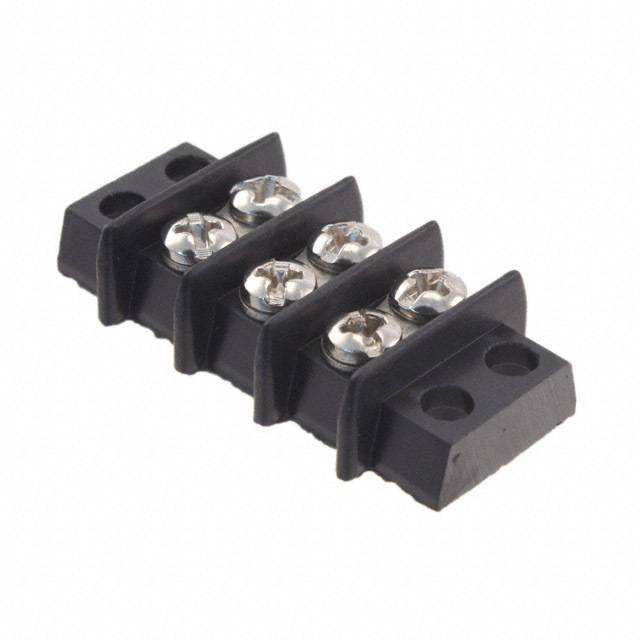

3-140
CONN BARRIER STRIP 3CIRC 0.375"

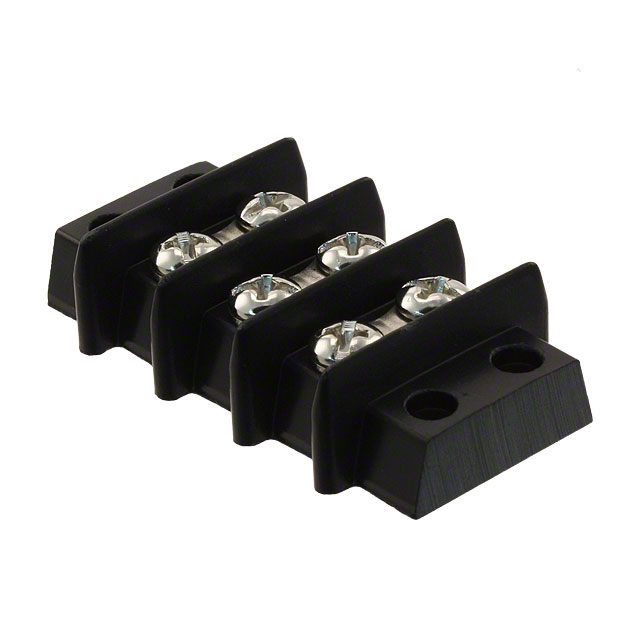

3-140-Y
CONN BARRIER STRIP 3CIRC 0.375"

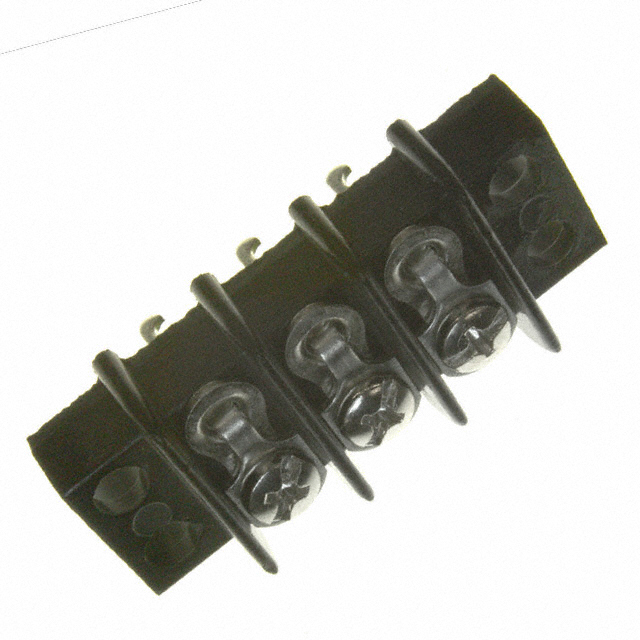

3-141
