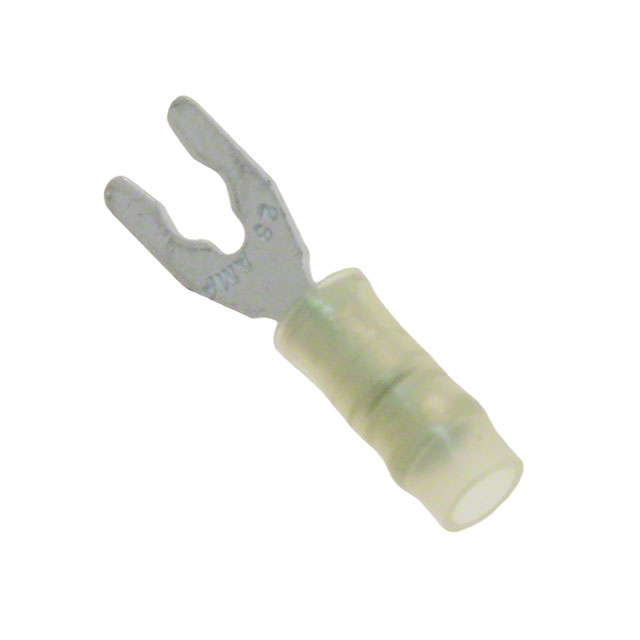

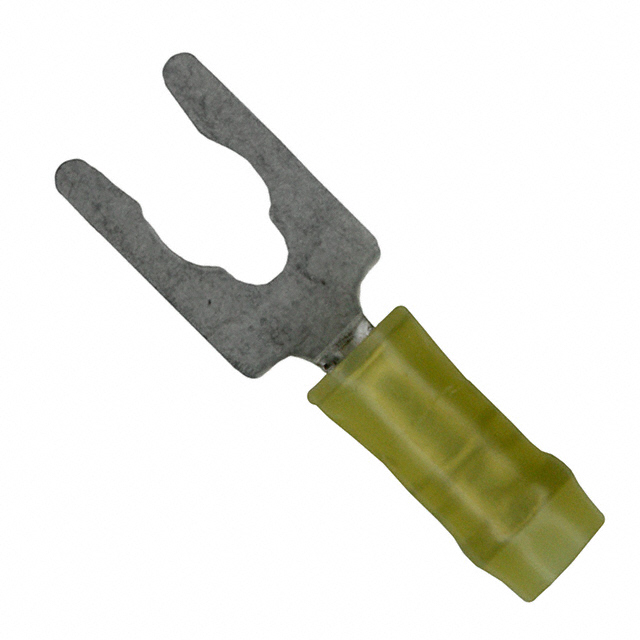

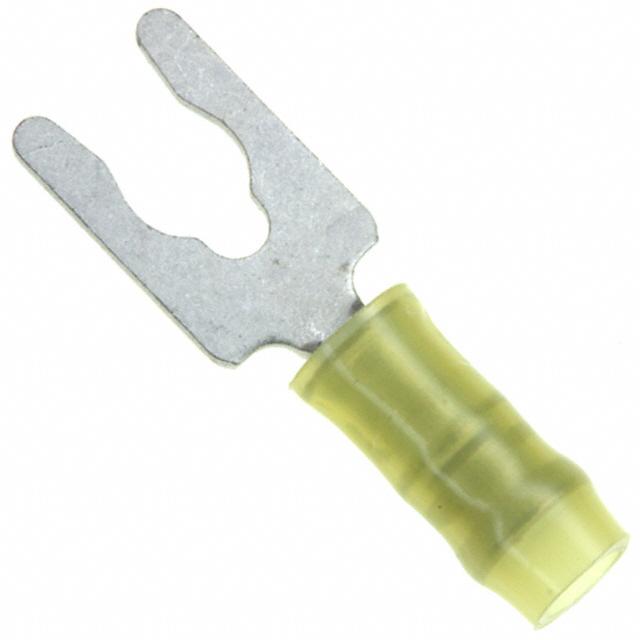

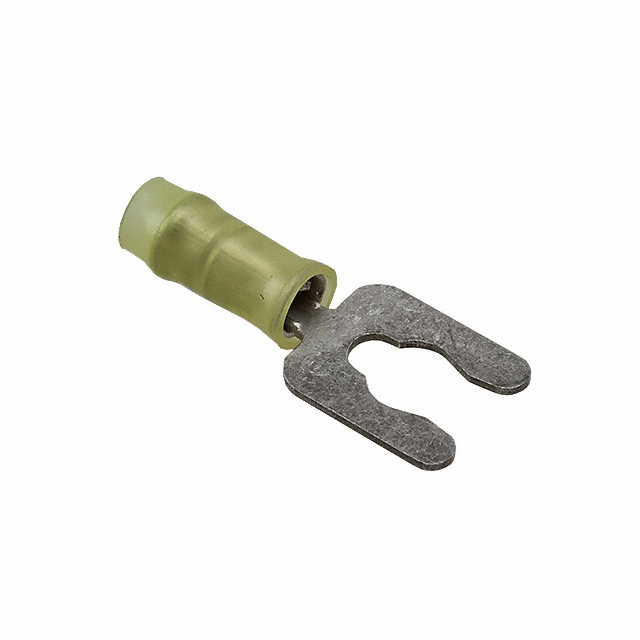

52924-1
Terminals - Spade Connectors
- Manufacturer No:
- 52924-1
- Manufacture:
- TE Connectivity AMP Connectors
- Datasheet:
- 52924-1
- Description:
- CONN SPADE TERM 22-26AWG #6 YEL
In Stock
14561 pcs On sales
$0.75
Product Parameter
- Part Status
- Active
- Tongue Inside Opening
- 0.140" (3.56mm)
- Termination
- Crimp
- Length - Ring Center to Termination
- 0.203" (5.16mm)
- Mounting Type
- Free Hanging (In-Line)
- Stud/Tab Size
- 6 Stud
- Terminal Type
- Spring, Snap
- Contact Finish
- Tin
- Color
- Yellow
- Contact Material
- Phosphor Bronze
- Series
- PIDG
- Length - Overall
- 0.679" (17.25mm)
- Features
- Serrated Termination
- Insulation Diameter
- 0.050" ~ 0.082" (1.27mm ~ 2.08mm)
- Packaging
- Cut Tape (CT)
- Width - Outer Edges
- 0.250" (6.35mm)
- Insulation
- Insulated
- Length - Termination
- 0.331" (8.41mm)
- Wire Gauge
- 22-26 AWG
- Material - Insulation
- Polyamide (PA), Nylon
