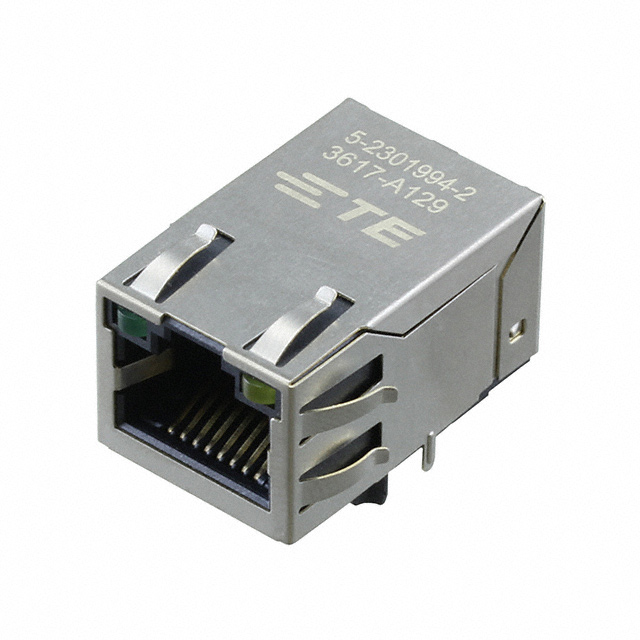

5-2301994-9
Modular Connectors - Jacks With Magnetics
- Manufacturer No:
- 5-2301994-9
- Manufacture:
- TE Connectivity AMP Connectors
- Datasheet:
- 5-2301994-9
- Description:
- CONN MAGJACK 1PORT 100 BASE-T
In Stock
2216 pcs On sales
$6.36
Product Parameter
- Applications
- 10/100 Base-T, AutoMDIX
- Contact Finish Thickness
- 30.0µin (0.76µm)
- Mounting Type
- Through Hole
- Number of Cores per Jack
- 4
- Tab Direction
- Up
- Connector Type
- RJ45
- Series
- -
- Contact Finish
- Gold
- Features
- Board Lock
- Number of Rows
- 1
- LED Color
- Green, Yellow - Green, Yellow
- Number of Ports
- 1
- Packaging
- Tray
- Shield Material
- Brass
- Shielding
- Shielded, EMI Finger
- Contact Material
- Copper Alloy
- Orientation
- 90° Angle (Right)
- Height Above Board
- 0.632" (16.05mm)
- Part Status
- Active
- Dielectric Material
- Liquid Crystal Polymer (LCP)
- Termination
- Solder
- Operating Temperature
- -40°C ~ 85°C
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
5-2301994-9 Relevant information

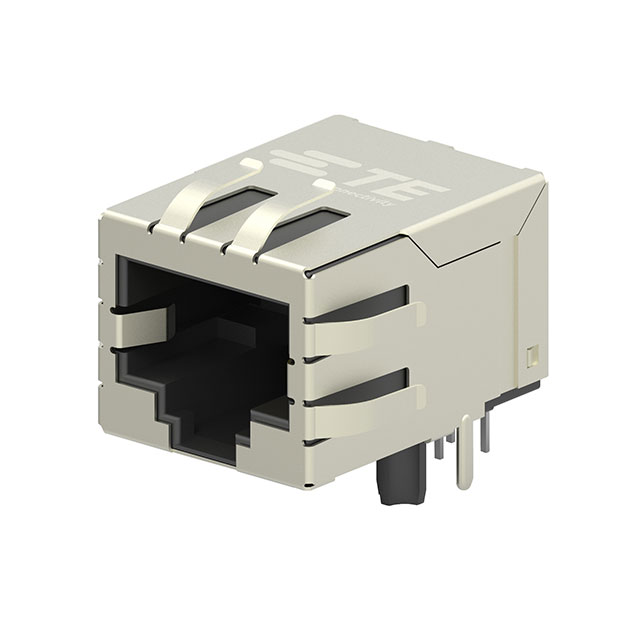

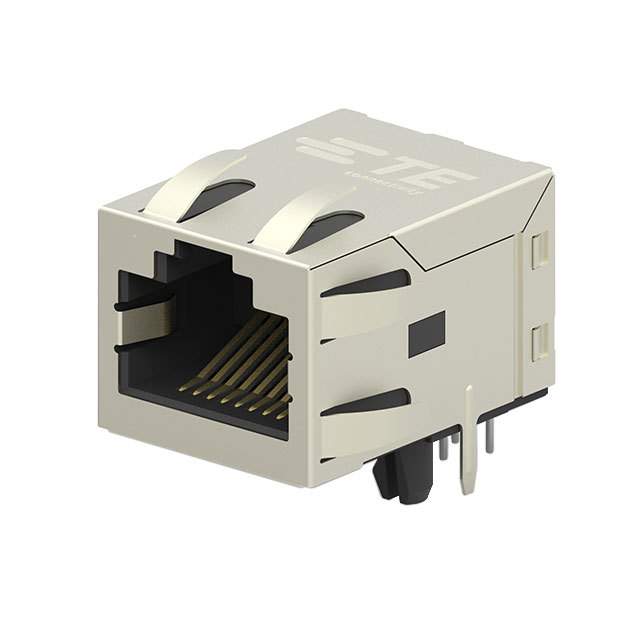

5-2301994-1
