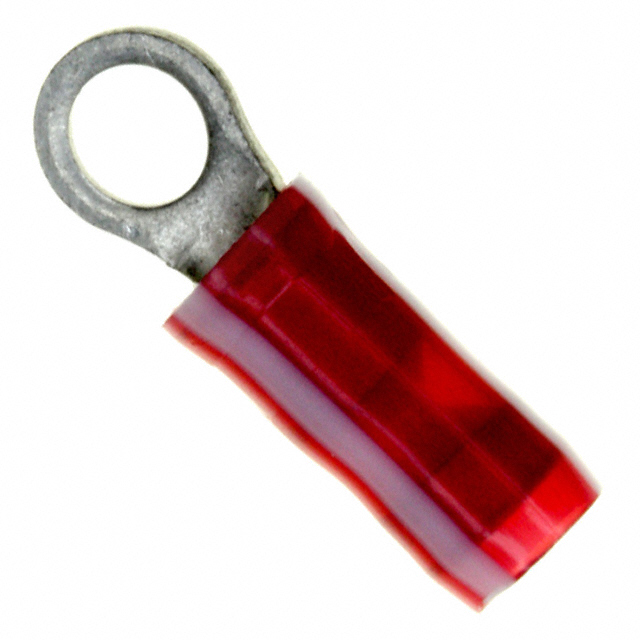

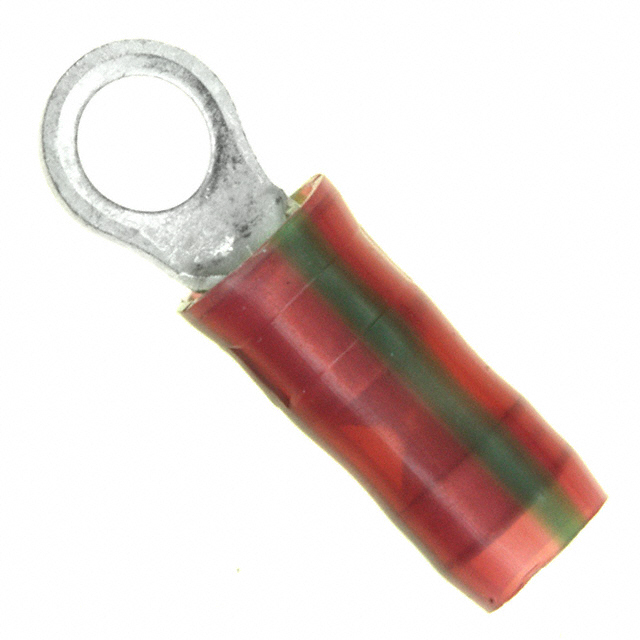

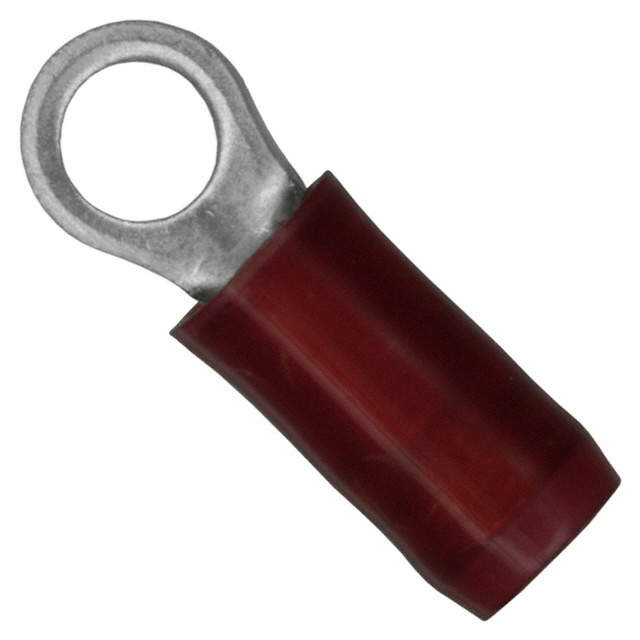

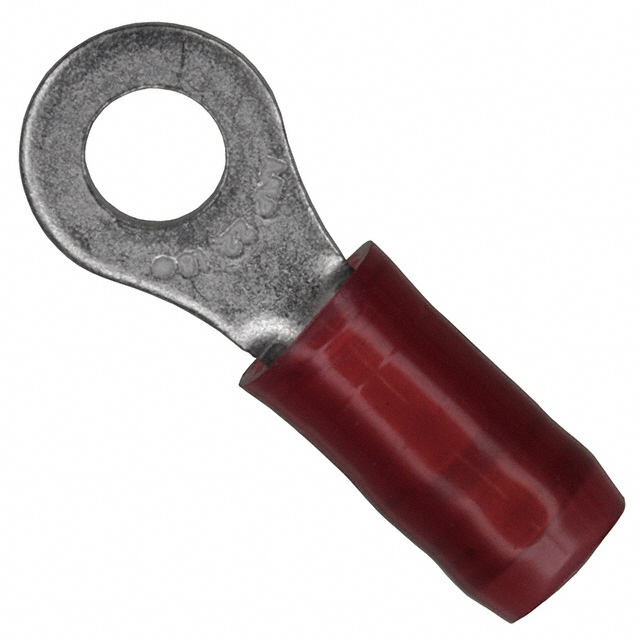

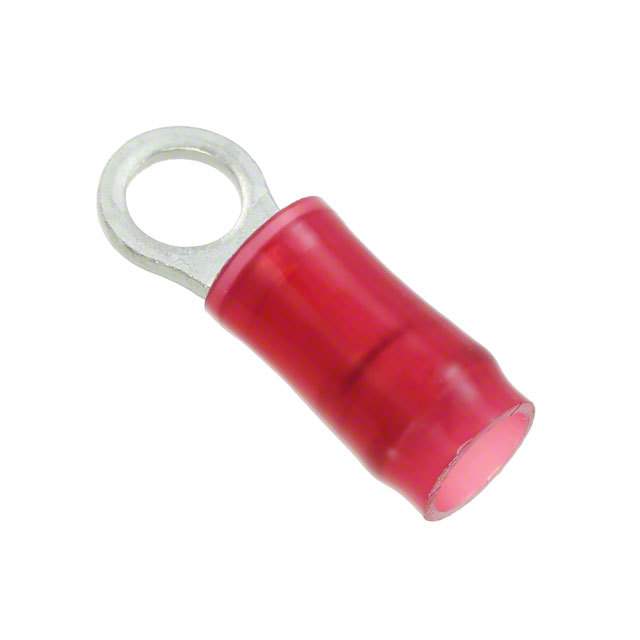

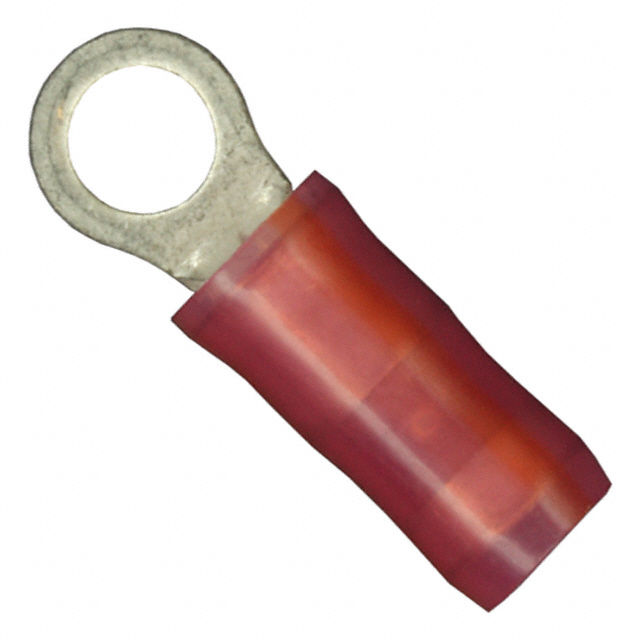

2-36152-1
Terminals - Ring Connectors
- Manufacturer No:
- 2-36152-1
- Manufacture:
- TE Connectivity AMP Connectors
- Datasheet:
- 2-36152-1
- Description:
- CONN RING CIRC 16-22AWG #6 CRIMP
In Stock
2483 pcs On sales
$0.35
Product Parameter
- Series
- PIDG
- Contact Material
- Copper
- Features
- Serrated Termination
- Length - Overall
- 0.797" (20.24mm)
- Packaging
- Cut Tape (CT)
- Insulation Diameter
- 0.105" ~ 0.140" (2.67mm ~ 3.56mm)
- Thickness
- 0.031" (0.79mm)
- Width - Outer Edges
- 0.281" (7.14mm)
- Insulation
- Insulated
- Material - Insulation
- Polyamide (PA), Nylon
- Wire Gauge
- 16-22 AWG
- Part Status
- Active
- Termination
- Crimp
- Mounting Type
- Free Hanging (In-Line)
- Stud/Tab Size
- 6 Stud
- Terminal Type
- Circular
- Color
- Red
- Contact Finish
- Tin
