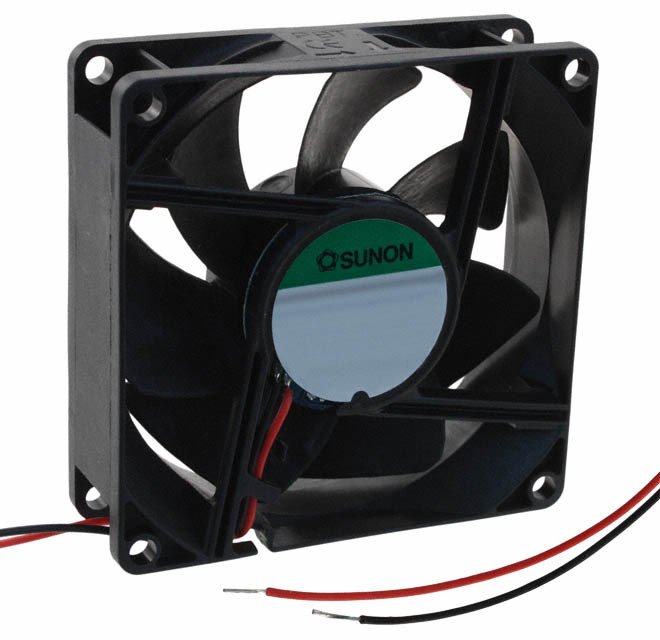

PF80251V1-1000U-A99
DC Brushless Fans (BLDC)
- Manufacturer No:
- PF80251V1-1000U-A99
- Manufacture:
- Sunon Fans
- Datasheet:
- PF80251V1-1000U-A99
- Description:
- FAN AXIAL 80X25MM VAPO 12VDC
In Stock
0 pcs On sales
$13.36
Product Parameter
- Approvals
- CE, CUR, TUV, UL
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 0.310A
- Termination
- 2 Wire Leads
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
- Bearing Type
- Vapo-Bearing™
- RPM
- 4800 RPM
- Power (Watts)
- 3.72W
- Noise
- 44.7 dB(A)
- Voltage Range
- 6 ~ 13.8VDC
- Width
- 25.00mm
- Static Pressure
- 0.410 in H2O (102.1 Pa)
- Series
- MagLev® PF
- Voltage - Rated
- 12VDC
- Weight
- 0.201 lb (91.17 g)
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Air Flow
- 60.0 CFM (1.68m³/min)
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Fan Type
- Tubeaxial
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Features
- Auto Restart
- Size / Dimension
- Square - 80mm L x 80mm H
