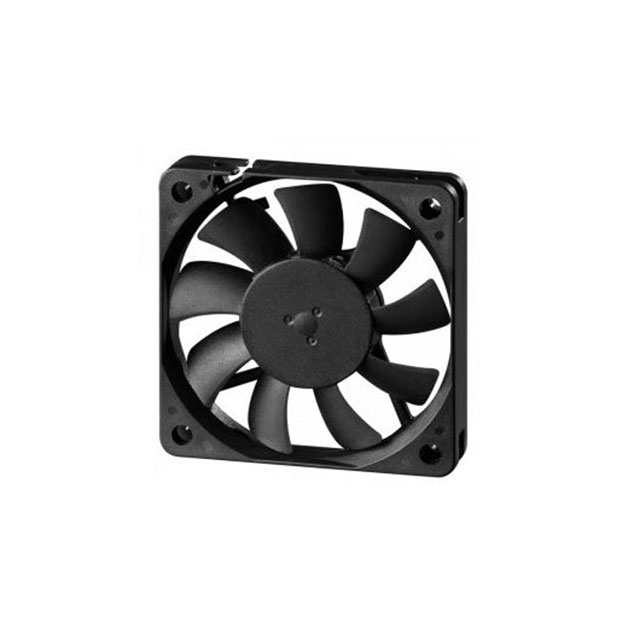

MB60202V2-000U-A99
DC Brushless Fans (BLDC)
- Manufacturer No:
- MB60202V2-000U-A99
- Manufacture:
- Sunon Fans
- Datasheet:
- MB60202V2-000U-A99
- Description:
- FAN 60X60X20MM 24VDC VAPO
In Stock
0 pcs On sales
$9.49
Product Parameter
- Fan Type
- Tubeaxial
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Features
- Auto Restart
- Size / Dimension
- Square - 60mm L x 60mm H
- Approvals
- CUR, TUV, UL
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 0.048A
- Termination
- 2 Wire Leads
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
- Bearing Type
- Vapo-Bearing™
- RPM
- 3700 RPM
- Power (Watts)
- 1.16W
- Noise
- 28.0 dB(A)
- Voltage Range
- 12 ~ 27.6VDC
- Width
- 20.00mm
- Static Pressure
- 0.140 in H2O (34.9 Pa)
- Series
- MagLev® MB
- Voltage - Rated
- 24VDC
- Weight
- 0.113 lb (51.26 g)
- Lifetime @ Temp.
- 60000 Hrs @ 40°C
- Air Flow
- 19.0 CFM (0.532m³/min)
- Material - Blade
- Polybutylene Terephthalate (PBT)
