GM0504PEV1-8. F GN
DC Brushless Fans (BLDC)
- Manufacturer No:
- GM0504PEV1-8. F GN
- Manufacture:
- Sunon Fans
- Datasheet:
- GM0504PEV1-8. F GN
- Description:
- FAN BLOWER 40X6MM 5VDC
In Stock
0 pcs On sales
$14.57
Product Parameter
- Part Status
- Active
- Current Rating (Amps)
- 0.090A
- Termination
- 3 Wire Leads
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
- Bearing Type
- Vapo-Bearing™
- RPM
- 7000 RPM
- Power (Watts)
- 500mW
- Noise
- 32.0 dB(A)
- Voltage Range
- 3 ~ 6VDC
- Width
- 6.90mm
- Static Pressure
- 0.100 in H2O (24.9 Pa)
- Series
- MagLev® GM
- Voltage - Rated
- 5VDC
- Weight
- -
- Lifetime @ Temp.
- -
- Air Flow
- 5.9 CFM (0.165m³/min)
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Fan Type
- Tubeaxial
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Features
- Locked Rotor Protection, Speed Sensor (Tach)
- Size / Dimension
- Square - 40mm L x 40mm H
- Approvals
- CE, CUR, TUV, UL
- Ingress Protection
- -
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
GM0504PEV1-8. F GN Relevant information
GM0501PDV1-8.GN
FAN AXIAL 20X8MM VAPO 5VDC WIRE

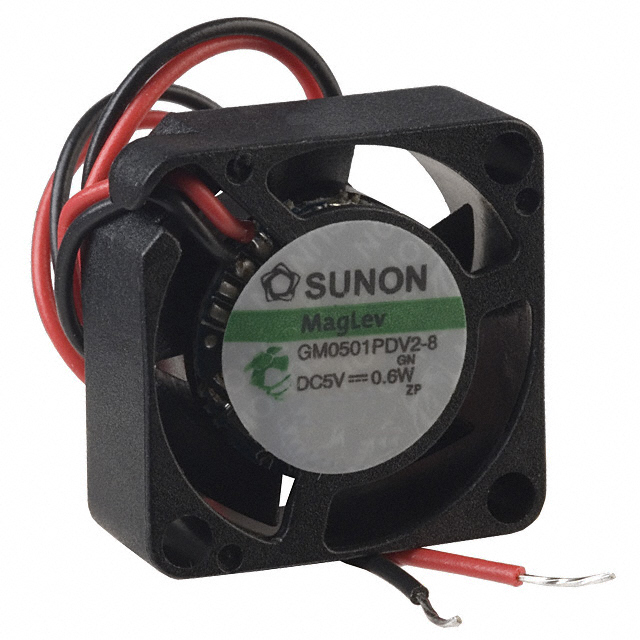

GM0501PDV2-8.GN
FAN AXIAL 20X8MM VAPO 5VDC WIRE

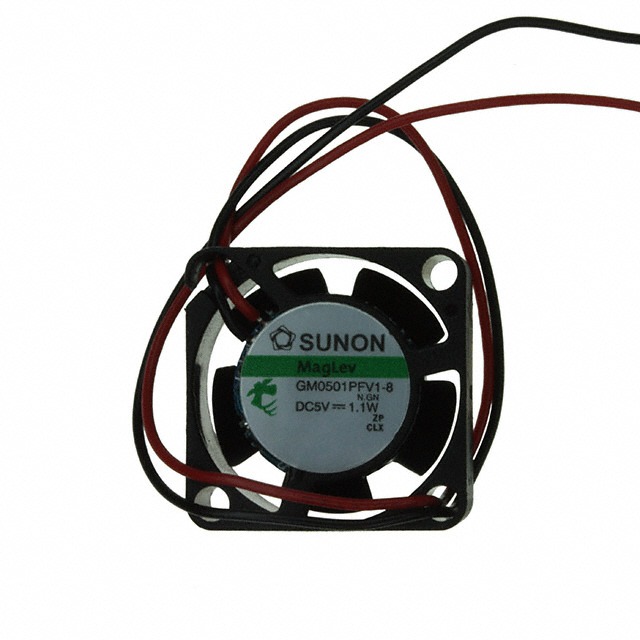

GM0501PFV1-8.N.GN
FAN AXIAL 20X10MM VAPO 5VDC WIRE

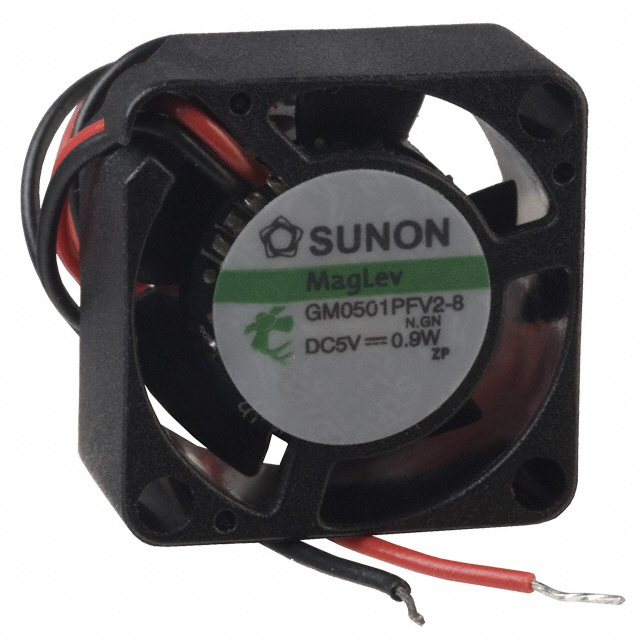

GM0501PFV2-8.N.GN
FAN AXIAL 20X10MM VAPO 5VDC WIRE
GM0502PEV1-8.N.GN
FAN AXIAL 25X6.9MM 5VDC WIRE

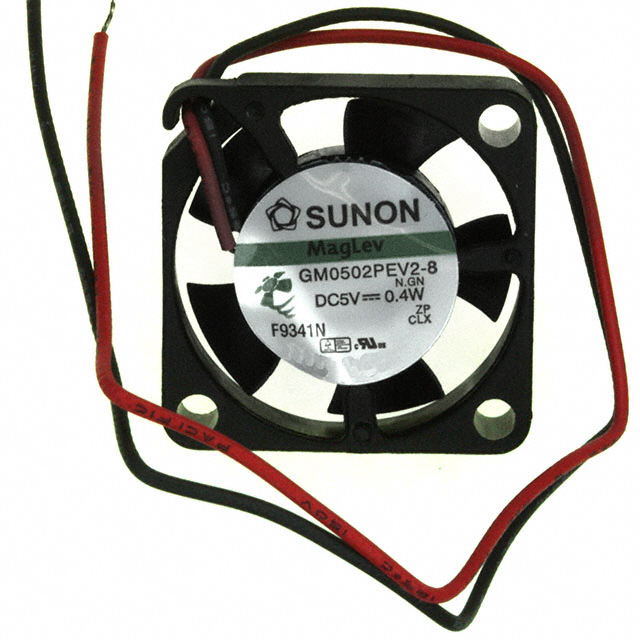

GM0502PEV2-8.N.GN
