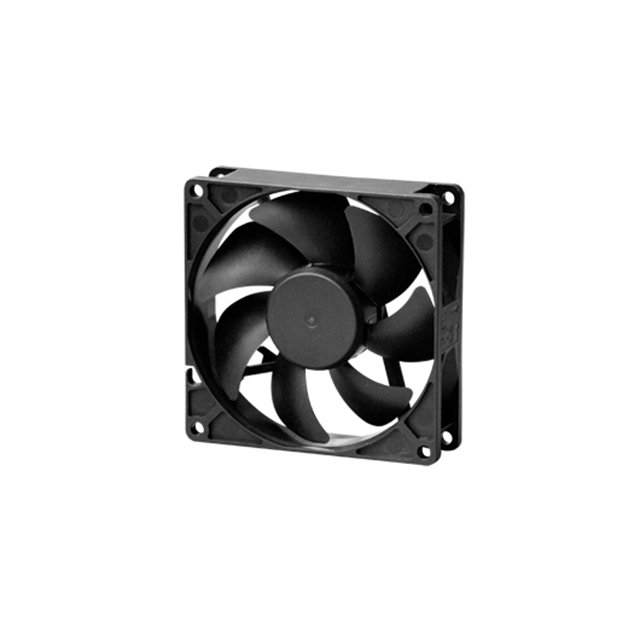

EE92252S3-000U-999
DC Brushless Fans (BLDC)
- Manufacturer No:
- EE92252S3-000U-999
- Manufacture:
- Sunon Fans
- Datasheet:
- EE92252S3-000U-999
- Description:
- FAN AXIAL 92X25MM 24VDC WIRE
In Stock
0 pcs On sales
$5.55
Product Parameter
- Weight
- 0.207 lb (93.89 g)
- Lifetime @ Temp.
- 50000 Hrs @ 40°C
- Air Flow
- 39.5 CFM (1.11m³/min)
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Fan Type
- Tubeaxial
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Features
- -
- Size / Dimension
- Square - 92mm L x 92mm H
- Approvals
- CE, CUR, TUV, UL
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 0.060A
- Termination
- 2 Wire Leads
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
- Bearing Type
- Sleeve
- RPM
- 2400 RPM
- Power (Watts)
- 1.40W
- Noise
- 28.0 dB(A)
- Voltage Range
- 10 ~ 27.6VDC
- Width
- 25.00mm
- Static Pressure
- 0.100 in H2O (24.9 Pa)
- Series
- EE
- Voltage - Rated
- 24VDC
