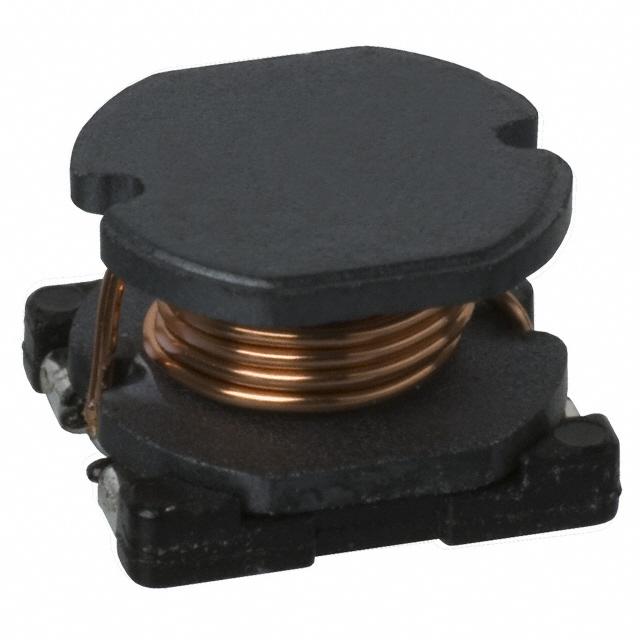

CR75NP-680KC
Fixed Inductors
- Manufacturer No:
- CR75NP-680KC
- Manufacture:
- Sumida America Components Inc.
- Package:
- Nonstandard
- Datasheet:
- CR75NP-680KC
- Description:
- FIXED IND 68UH 850MA 280 MOHM
In Stock
1000 pcs On sales
$0.42
Product Parameter
- Part Status
- Active
- Inductance Frequency - Test
- 2.52MHz
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Material - Core
- Ferrite
- Type
- Wirewound
- Size / Dimension
- 0.307" L x 0.276" W (7.80mm x 7.00mm)
- Series
- CR75
- DC Resistance (DCR)
- 280mOhm Max
- Ratings
- -
- Current - Saturation
- -
- Q @ Freq
- -
- Current Rating (Amps)
- 850mA
- Packaging
- Tape & Reel (TR)
- Height - Seated (Max)
- 0.217" (5.50mm)
- Shielding
- Unshielded
- Operating Temperature
- -40°C ~ 100°C
- Tolerance
- ±10%
- Supplier Device Package
- -
- Inductance
- 68µH
- Frequency - Self Resonant
- 11MHz
