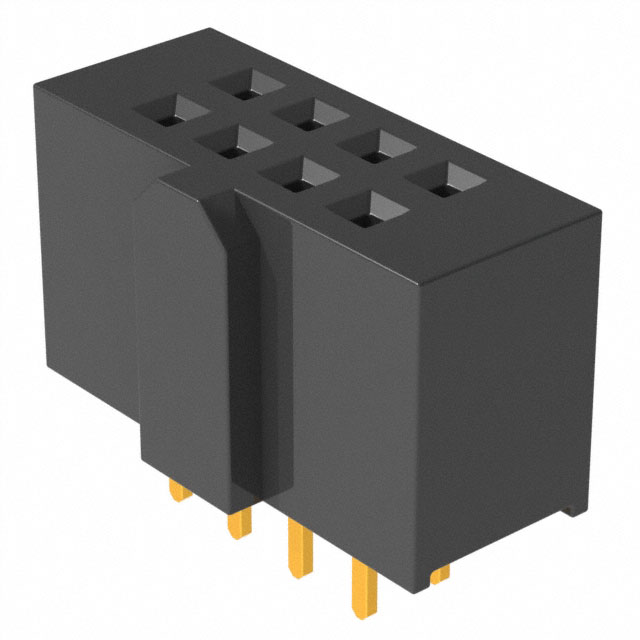

SFH11-NPPC-D13-ST-BK
Rectangular Connectors - Headers, Receptacles, Female Sockets
- Manufacturer No:
- SFH11-NPPC-D13-ST-BK
- Manufacture:
- Sullins Connector Solutions
- Datasheet:
- SFH11-NPPC-D13-ST-BK
- Description:
- CONN HDR 26POS 0.1 GOLD PCB
In Stock
0 pcs On sales
$1
Product Parameter
- Features
- Polarizing Key
- Voltage Rating
- -
- Mated Stacking Heights
- -
- Packaging
- Tray
- Contact Material
- Phosphor Bronze
- Contact Finish - Mating
- Gold
- Part Status
- Active
- Insulation Color
- Black
- Number of Positions Loaded
- All
- Termination
- Solder
- Insulation Height
- 0.335" (8.51mm)
- Material Flammability Rating
- UL94 V-0
- Applications
- -
- Ingress Protection
- -
- Contact Finish Thickness - Post
- Flash
- Contact Type
- Female Socket
- Insulation Material
- Polyamide (PA), Nylon
- Contact Finish Thickness - Mating
- Flash
- Contact Shape
- Square
- Number of Positions
- 26
- Mounting Type
- Through Hole
- Row Spacing - Mating
- 0.100" (2.54mm)
- Connector Type
- Header
- Contact Finish - Post
- Gold
- Fastening Type
- Push-Pull
- Contact Length - Post
- 0.126" (3.20mm)
- Style
- Board to Board
- Number of Rows
- 2
- Current Rating (Amps)
- 3A
- Series
- SFH11
- Pitch - Mating
- 0.100" (2.54mm)
- Operating Temperature
- -40°C ~ 105°C
