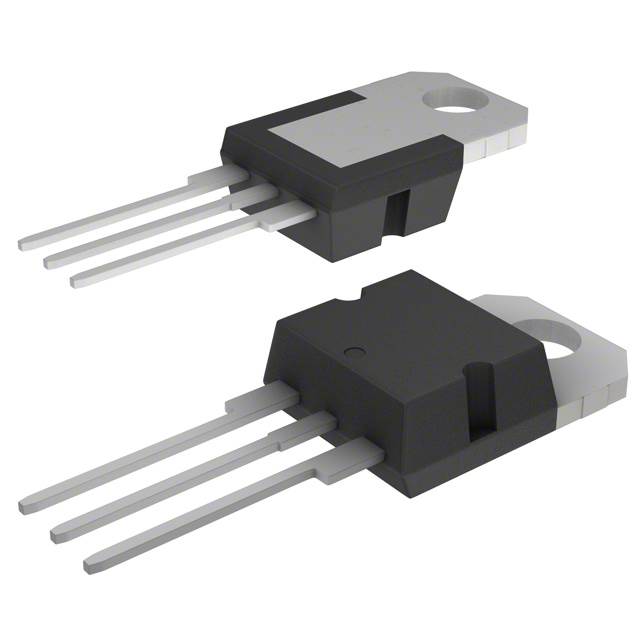

STGP19NC60HD
Transistors - IGBTs - Single
- Manufacturer No:
- STGP19NC60HD
- Manufacture:
- STMicroelectronics
- Package:
- TO-220-3
- Datasheet:
- STGP19NC60HD
- Description:
- IGBT 600V 40A 130W TO220
In Stock
11264 pcs On sales
$2.2
Product Parameter
- Power - Max
- 130W
- Current - Collector Pulsed (Icm)
- 60A
- Mounting Type
- Through Hole
- Voltage - Collector Emitter Breakdown (Max)
- 600V
- Package / Case
- TO-220-3
- Test Condition
- 390V, 12A, 10Ohm, 15V
- Base Part Number
- STGP19
- Switching Energy
- 85µJ (on), 189µJ (off)
- Series
- PowerMESH™
- Td (on/off) @ 25°C
- 25ns/97ns
- IGBT Type
- -
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Packaging
- Tube
- Supplier Device Package
- TO-220
- Input Type
- Standard
- Vce(on) (Max) @ Vge, Ic
- 2.5V @ 15V, 12A
- Gate Charge
- 53nC
- Reverse Recovery Time (trr)
- 31ns
- Part Status
- Active
- Current - Collector (Ic) (Max)
- 40A
