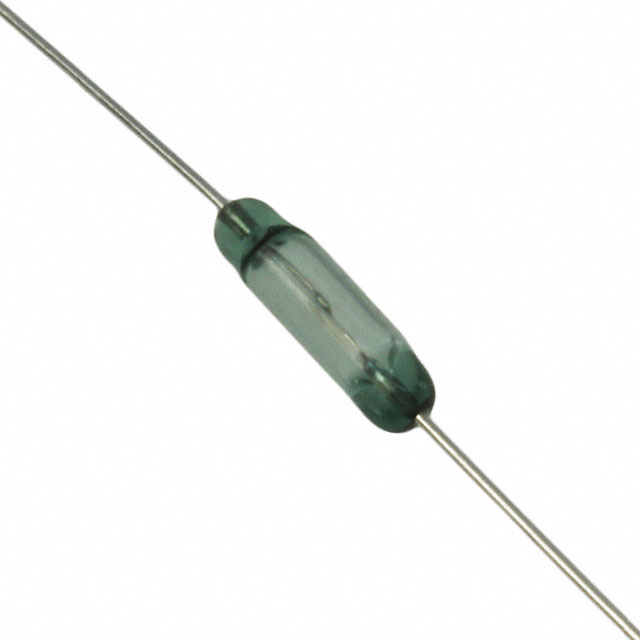

ORD 229/20-25 AT

Magnetic, Reed Switches

Manufacturer No:: ORD 229/20-25 AT
Manufacture:: Standex-Meder Electronics
Datasheet:: ORD 229/20-25 AT
Description:: SWITCH REED SPST-NO 500MA 300V

In Stock

3320 pcs On sales

$1.33

Product Parameter

Operate Time: 0.6ms

Voltage - Switching AC: 300V

Release Time: 0.05ms

Voltage - Switching DC: 350V

Mounting Type: Through Hole

Operate Range: 20 ~ 25AT

Power - Rated: 50W

Type: Glass Body

Release Range: -

Series: ORD

Current - Carry: 2.5A (AC/DC)

Circuit: SPST-NO

Length - Overall: 2.181" (55.40mm)

Packaging: Bulk

Termination Style: Axial

Capacitance: 0.5pF

Height Above Board: -

Part Status: Active

Current - Switching: 500mA (AC), 700mA (DC)

Size - Body: 0.108" Dia x 0.827" L (2.75mm x 21.00mm)

Operating Temperature: -
