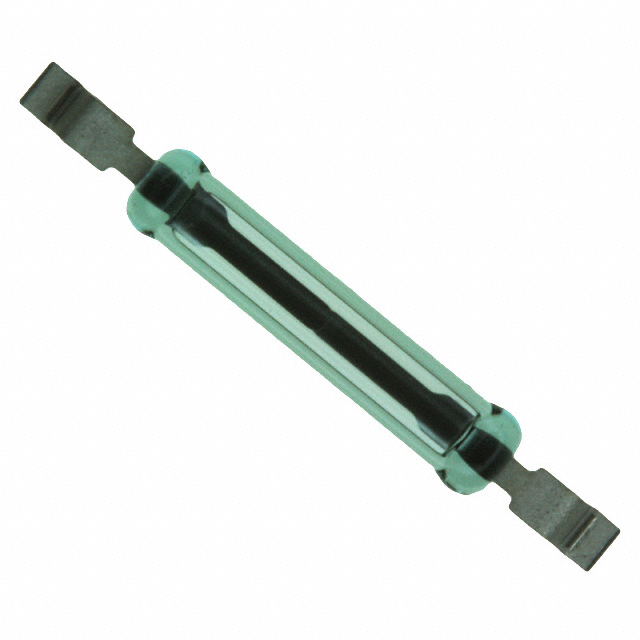

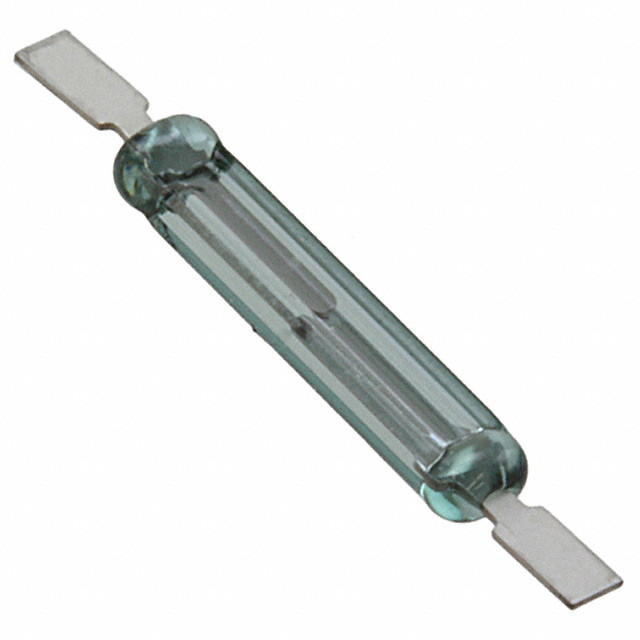

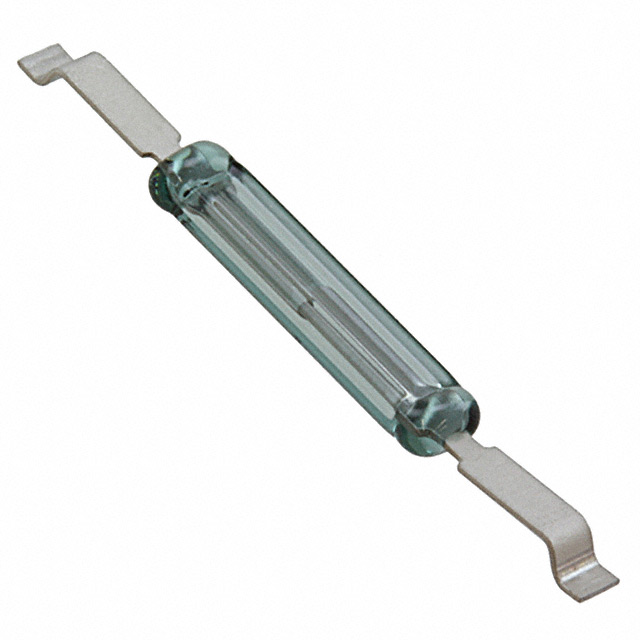

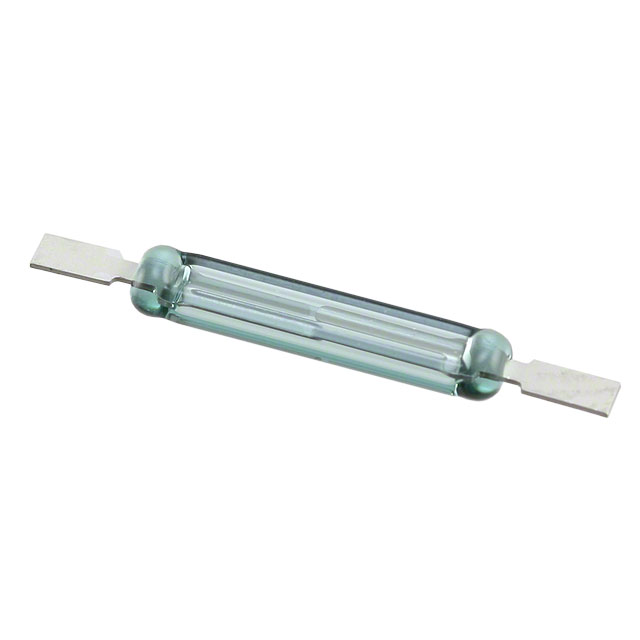

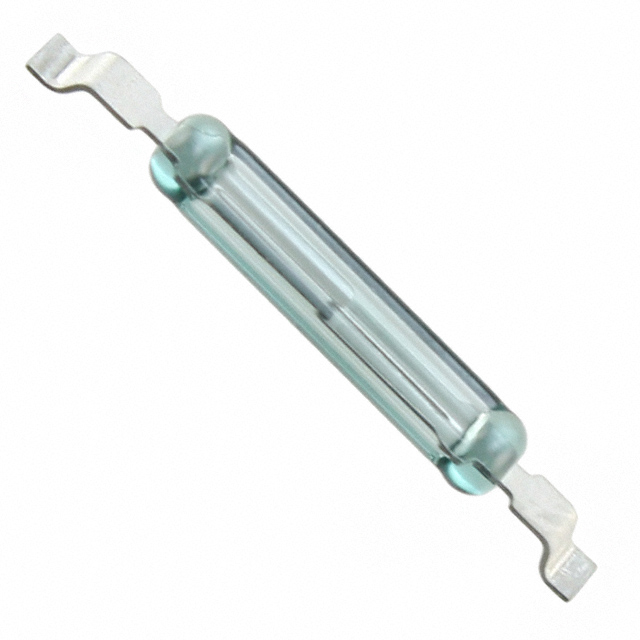

MK23-87-C-4
Magnetic, Reed Switches
- Manufacturer No:
- MK23-87-C-4
- Manufacture:
- Standex-Meder Electronics
- Datasheet:
- MK23-87-C-4
- Description:
- SWITCH REED SPST NO RND BENT SMD
In Stock
0 pcs On sales
$0
Product Parameter
- Power - Rated
- 10W
- Type
- Glass Body
- Release Range
- -
- Series
- MK23
- Current - Carry
- 500mA (AC/DC)
- Circuit
- SPST-NO
- Length - Overall
- 0.646" (16.40mm)
- Packaging
- Tape & Reel (TR)
- Termination Style
- Gull Wing
- Capacitance
- 0.2pF
- Height Above Board
- 0.094" (2.40mm)
- Part Status
- Preliminary
- Current - Switching
- 400mA (AC/DC)
- Size - Body
- 0.079" Dia x 0.394" L (2.00mm x 10.00mm)
- Operating Temperature
- -40°C ~ 130°C
- Operate Time
- 0.6ms
- Voltage - Switching AC
- 200V
- Release Time
- 0.05ms
- Voltage - Switching DC
- 200V
- Mounting Type
- Surface Mount
- Operate Range
- 15 ~ 20AT
