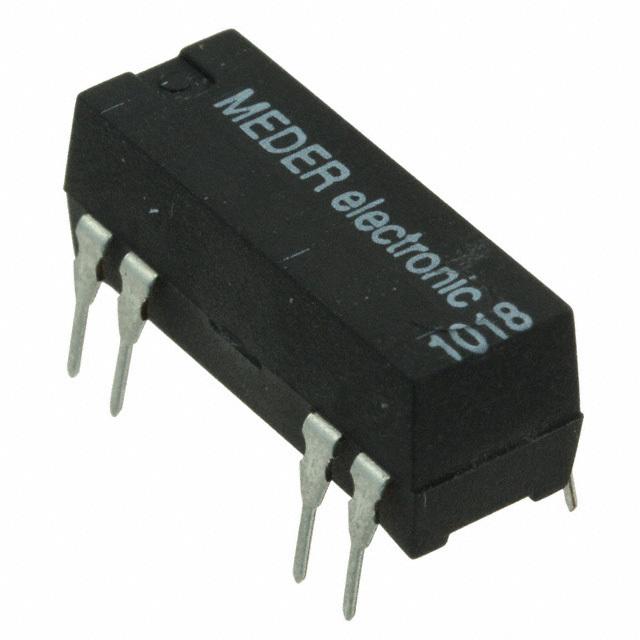

DIP05-1C90-51F
Reed Relays
- Manufacturer No:
- DIP05-1C90-51F
- Manufacture:
- Standex-Meder Electronics
- Datasheet:
- DIP05-1C90-51F
- Description:
- RELAY REED SPDT 250MA 5V
In Stock
0 pcs On sales
$0
Product Parameter
- Part Status
- Active
- Must Operate Voltage
- 3.5 VDC
- Seal Rating
- -
- Must Release Voltage
- 0.75 VDC
- Coil Current
- 25.0mA
- Operating Temperature
- -20°C ~ 70°C
- Coil Voltage
- 5VDC
- Contact Rating (Current)
- 250mA
- Contact Form
- SPDT (1 Form C)
- Operate Time
- 0.7ms
- Release Time
- 1.5ms
- Mounting Type
- Through Hole
- Series
- DIP
- Coil Resistance
- 200 Ohms
- Features
- Diode
- Contact Material
- -
- Coil Type
- Non Latching
- Switching Voltage
- 175VAC, 175VDC - Max
- Packaging
- Tube
- Termination Style
- PC Pin
