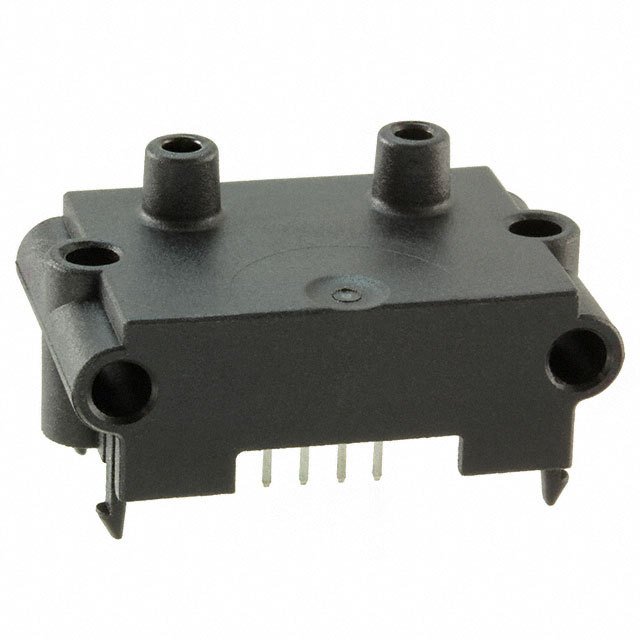

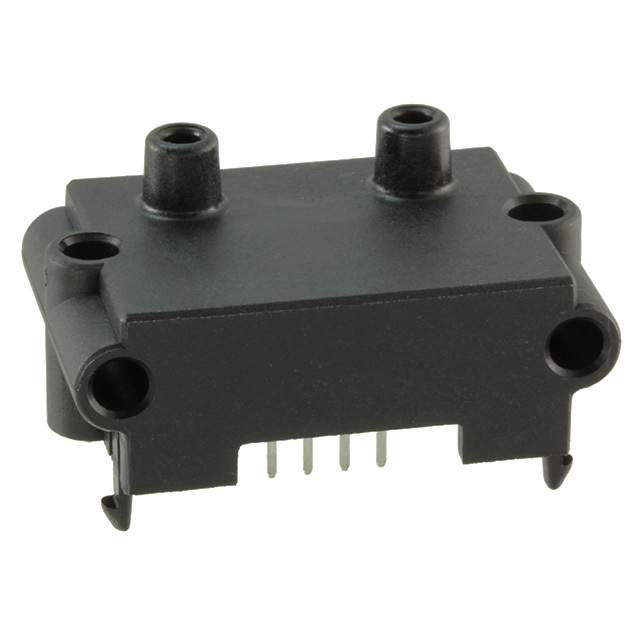

SDP610-125PA
Pressure Sensors, Transducers
- Manufacturer No:
- SDP610-125PA
- Manufacture:
- Sensirion AG
- Package:
- 3-SIP Module
- Datasheet:
- SDP610-125PA
- Description:
- SENSOR PRESSURE DIFF 3SIP
In Stock
116 pcs On sales
$36.74
Product Parameter
- Port Size
- Male - 0.2" (5.2mm) Tube, Dual
- Supplier Device Package
- 3-SIP
- Port Style
- Barbed
- Output Type
- I²C
- Part Status
- Not For New Designs
- Applications
- Board Mount
- Pressure Type
- Differential
- Package / Case
- 3-SIP Module
- Maximum Pressure
- ±14.5PSI (±100kPa)
- Output
- 16 b
- Voltage - Supply
- 3V ~ 3.6V
- Series
- SDP600
- Termination Style
- PC Pin
- Accuracy
- ±3%
- Operating Pressure
- ±0.018PSI (± 0.125kPa)
- Features
- Temperature Compensated
- Operating Temperature
- -20°C ~ 80°C
