9CR0612P0S03
DC Brushless Fans (BLDC)
- Manufacturer No:
- 9CR0612P0S03
- Manufacture:
- Sanyo Denki America Inc.
- Datasheet:
- 9CR0612P0S03
- Description:
- FAN 60X76MM 12VDC TACH,PWM
In Stock
14 pcs On sales
$34.08
Product Parameter
- Approvals
- CSA, TUV, UR
- Current Rating (Amps)
- 3.2A
- Part Status
- Active
- Operating Temperature
- 14 ~ 140°F (-10 ~ 60°C)
- Termination
- 4 Wire Leads
- Bearing Type
- Ball
- RPM
- 11500 Front, 7000 Rear
- Voltage Range
- 10.8 ~ 13.2VDC
- Noise
- 66.0 dB(A)
- Static Pressure
- 2.210 in H2O (550.5 Pa)
- Width
- 76.00mm
- Voltage - Rated
- 12VDC
- Series
- San Ace 60
- Lifetime @ Temp.
- 40000 Hrs @ 60°C
- Weight
- 0.507 lb (229.97 g)
- Material - Blade
- Plastic
- Air Flow
- 79.8 CFM (2.23m³/min)
- Material - Frame
- Plastic
- Fan Type
- Tubeaxial
- Size / Dimension
- Square - 60mm L x 60mm H
- Features
- Counter-Rotating, PWM Control, Speed Sensor (Tach)
- Ingress Protection
- -
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
9CR0612P0S03 Relevant information

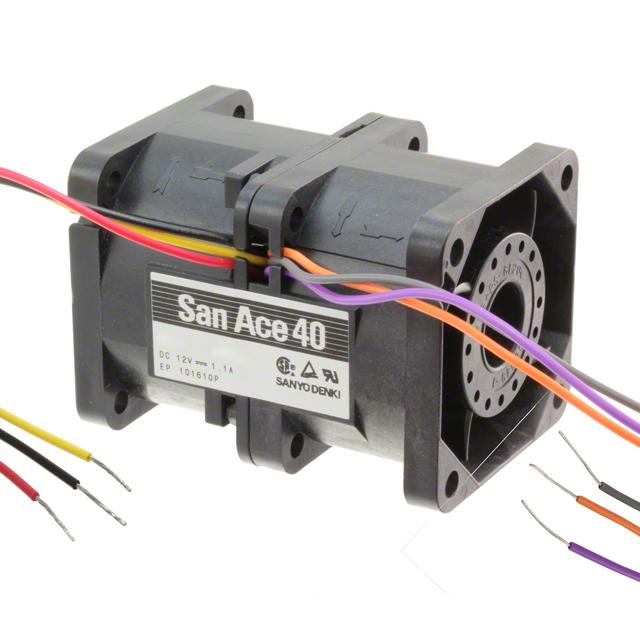

9CR0412H501
