2SB1560

Transistors - Bipolar (BJT) - Single

Manufacturer No:: 2SB1560
Manufacture:: Sanken

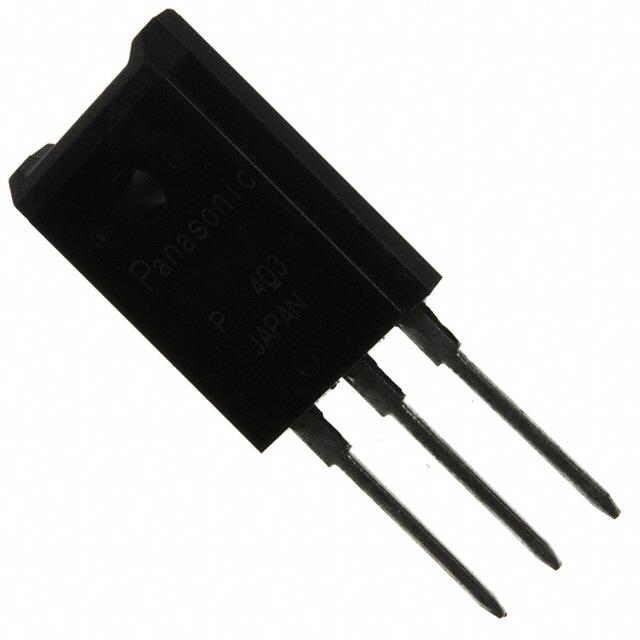

Package:: TO-3P-3, SC-65-3
Datasheet:: 2SB1560
Description:: TRANS PNP DARL 150V 10A TO-3P

In Stock

348 pcs On sales

$3.17

Product Parameter

Supplier Device Package: TO-3P

Vce Saturation (Max) @ Ib, Ic: 2.5V @ 7mA, 7A

Current - Collector (Ic) (Max): 10A

Series: -

Current - Collector Cutoff (Max): 100µA (ICBO)

Packaging: Bulk

DC Current Gain (hFE) (Min) @ Ic, Vce: 5000 @ 7A, 4V

Part Status: Active

Voltage - Collector Emitter Breakdown (Max): 150V

Power - Max: 100W

Mounting Type: Through Hole

Package / Case: TO-3P-3, SC-65-3

Transistor Type: PNP - Darlington

Operating Temperature: 150°C (TJ)

Frequency - Transition: 50MHz
