BNC7T-J-P-HN-RA-BH2D
Coaxial Connectors (RF)
- Manufacturer No:
- BNC7T-J-P-HN-RA-BH2D
- Manufacture:
- Samtec, Inc.
- Datasheet:
- BNC7T-J-P-HN-RA-BH2D
- Description:
- CONN BNC JACK R/A 75 OHM PCB
In Stock
66 pcs On sales
$7.68
Product Parameter
- Mounting Type
- Panel Mount, Through Hole, Right Angle
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Series
- TRUE75™ BNC7T
- Connector Type
- Jack, Female Socket
- Operating Temperature
- -65°C ~ 125°C
- Features
- -
- Fastening Type
- Bayonet Lock
- Center Contact Plating
- Gold
- Includes
- 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
- Insertion Loss
- -
- Center Contact Material
- Copper Alloy
- Impedance
- 75Ohm
- Voltage Rating
- 500V
- Packaging
- -
- Connector Style
- BNC
- Body Finish
- Nickel
- Frequency - Max
- 12GHz
- Cable Group
- -
- Number of Ports
- 1
- Part Status
- Active
- Mounting Feature
- Bulkhead - Front Side Nut
- Body Material
- Brass
- Ingress Protection
- -
- Housing Color
- Silver
- Shield Termination
- Solder
- Mating Cycles
- -
- Contact Termination
- Solder
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
BNC7T-J-P-HN-RA-BH2D Relevant information
BNC75-3301
CONN BNC JACK STR 75 OHM PCB
BNC7T-J-C-GN-ST-BH3
CONN BNC JACK STR 75 OHM SOLDER
BNC7T-J-C-HN-ST-BH3
CONN BNC JACK STR 75 OHM SOLDER

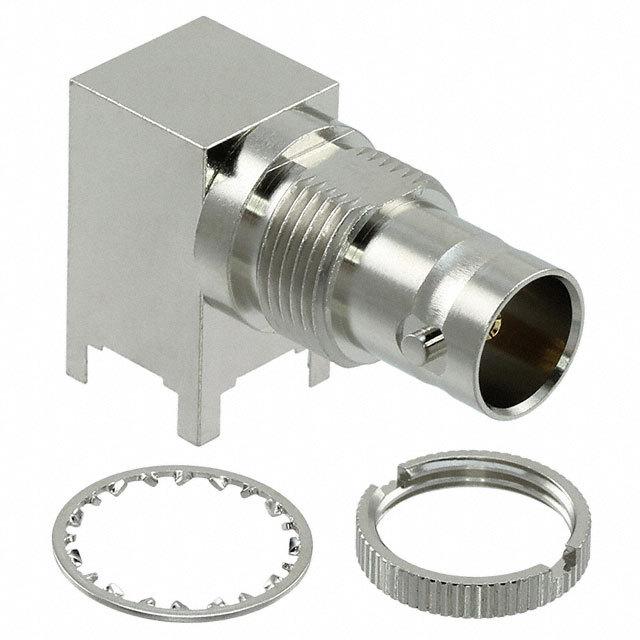

BNC7T-J-P-GN-RA-BH1
CONN BNC JACK R/A 75 OHM PCB
BNC7T-J-P-GN-RA-BH2D
CONN BNC JACK R/A 75 OHM PCB

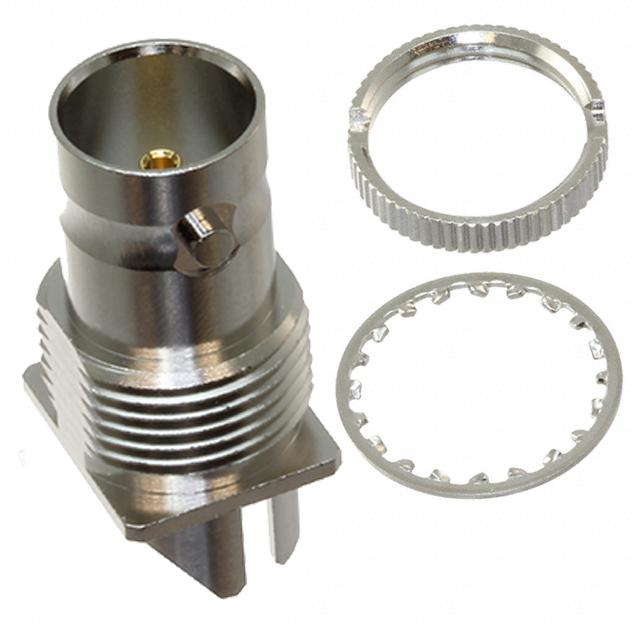

BNC7T-J-P-GN-ST-EM1
