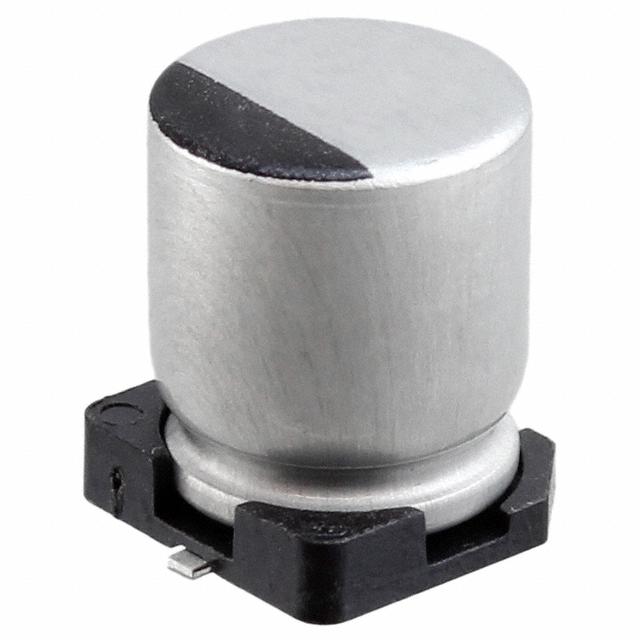

50THV47M8X10.5
Aluminum Electrolytic Capacitors
- Manufacturer No:
- 50THV47M8X10.5
- Manufacture:
- Rubycon
- Package:
- Radial, Can - SMD
- Datasheet:
- 50THV47M8X10.5
- Description:
- CAP ALUM 47UF 20% 50V SMD
In Stock
5278 pcs On sales
$0
Product Parameter
- Ratings
- AEC-Q200
- Size / Dimension
- 0.315" Dia (8.00mm)
- Packaging
- Digi-Reel®
- Height - Seated (Max)
- 0.413" (10.50mm)
- Tolerance
- ±20%
- Operating Temperature
- -40°C ~ 125°C
- Capacitance
- 47µF
- Surface Mount Land Size
- 0.327" L x 0.327" W (8.30mm x 8.30mm)
- Part Status
- Active
- Ripple Current @ Low Frequency
- 125mA @ 120Hz
- Applications
- Automotive
- Ripple Current @ High Frequency
- 250mA @ 100kHz
- Lead Spacing
- -
- ESR (Equivalent Series Resistance)
- 360mOhm @ 100kHz
- Polarization
- Polar
- Mounting Type
- Surface Mount
- Package / Case
- Radial, Can - SMD
- Voltage - Rated
- 50V
- Series
- THV
- Lifetime @ Temp.
- 3000 Hrs @ 125°C
