RT8560GQW
PMIC - LED Drivers
- Manufacturer No:
- RT8560GQW
- Manufacture:
- Richtek USA Inc.
- Package:
- 20-WFQFN Exposed Pad
- Datasheet:
- RT8560GQW
- Description:
- IC LED DRIVER RGLTR DIM 20WQFN
In Stock
0 pcs On sales
$0
Product Parameter
- Mounting Type
- Surface Mount
- Package / Case
- 20-WFQFN Exposed Pad
- Voltage - Output
- 60V
- Number of Outputs
- 4
- Type
- DC DC Regulator
- Internal Switch(s)
- Yes
- Series
- -
- Operating Temperature
- -40°C ~ 85°C (TA)
- Dimming
- Analog, PWM
- Voltage - Supply (Max)
- 40V
- Topology
- Step-Up (Boost)
- Voltage - Supply (Min)
- 7V
- Frequency
- 1MHz
- Supplier Device Package
- 20-WQFN (4x4)
- Packaging
- Digi-Reel®
- Current - Output / Channel
- 30mA
- Part Status
- Discontinued at Digi-Key
- Applications
- Backlight
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
RT8560GQW Relevant information

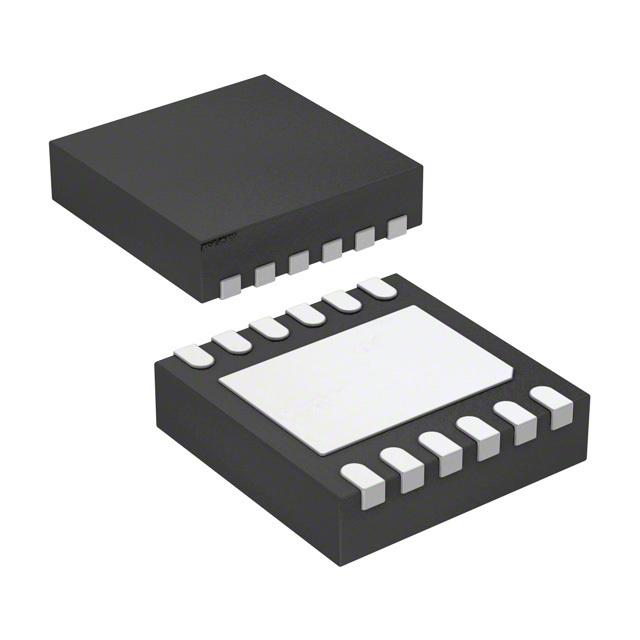

RT8509AGQW
