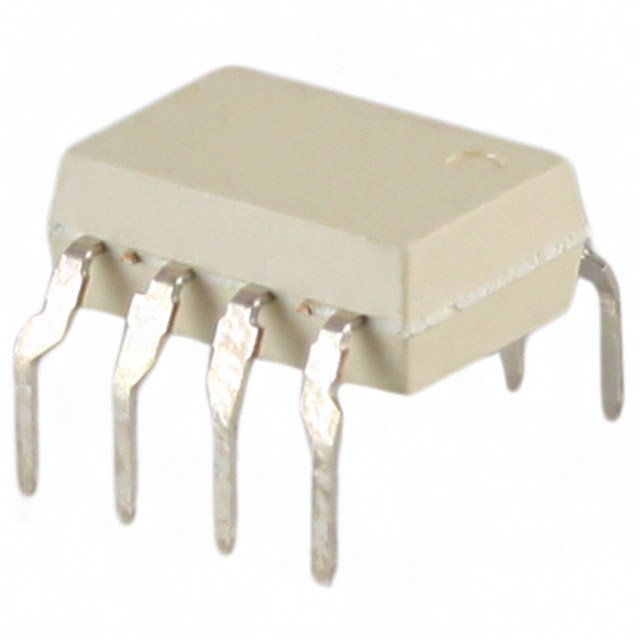

PS9513L2-AX
Optoisolators - Logic Output
- Manufacturer No:
- PS9513L2-AX
- Manufacture:
- Renesas Electronics America
- Package:
- 8-SMD, Gull Wing
- Datasheet:
- PS9513L2-AX
- Description:
- OPTOISO 5KV OPEN COLL 8DIP GW
In Stock
0 pcs On sales
$1.82
Product Parameter
- Input Type
- DC
- Current - Output / Channel
- 15mA
- Output Type
- Open Collector
- Voltage - Forward (Vf) (Typ)
- 1.65V
- Part Status
- Active
- Current - DC Forward (If) (Max)
- 25mA
- Mounting Type
- Surface Mount
- Propagation Delay tpLH / tpHL (Max)
- 750ns, 500ns
- Package / Case
- 8-SMD, Gull Wing
- Common Mode Transient Immunity (Min)
- 15kV/µs
- Voltage - Supply
- 4.5V ~ 20V
- Number of Channels
- 1
- Voltage - Isolation
- 5000Vrms
- Operating Temperature
- -40°C ~ 100°C
- Series
- -
- Inputs - Side 1/Side 2
- 1/0
- Data Rate
- 1Mbps
- Rise / Fall Time (Typ)
- -
- Packaging
- Tube
- Supplier Device Package
- 8-DIP Gull Wing
