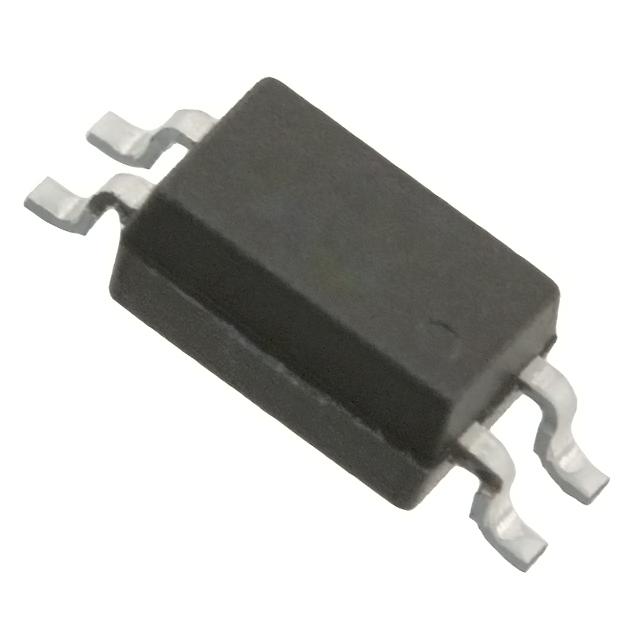

PS2805C-1-A
Optoisolators - Transistor, Photovoltaic Output
- Manufacturer No:
- PS2805C-1-A
- Manufacture:
- Renesas Electronics America
- Package:
- 4-SOIC (0.173", 4.40mm Width)
- Datasheet:
- PS2805C-1-A
- Description:
- OPTOISOLATOR 2.5KV TRANS 4SOIC
In Stock
0 pcs On sales
$0
Product Parameter
- Output Type
- Transistor
- Current Transfer Ratio (Max)
- 400% @ 5mA
- Part Status
- Active
- Current Transfer Ratio (Min)
- 50% @ 5mA
- Mounting Type
- Surface Mount
- Voltage - Forward (Vf) (Typ)
- 1.2V
- Package / Case
- 4-SOIC (0.173", 4.40mm Width)
- Turn On / Turn Off Time (Typ)
- 10µs, 7µs
- Number of Channels
- 1
- Current - DC Forward (If) (Max)
- 30mA
- Voltage - Isolation
- 2500Vrms
- Vce Saturation (Max)
- 300mV
- Operating Temperature
- -55°C ~ 100°C
- Rise / Fall Time (Typ)
- 5µs, 7µs
- Series
- NEPOC
- Voltage - Output (Max)
- 80V
- Packaging
- Strip
- Supplier Device Package
- 4-SSOP
- Input Type
- AC, DC
- Current - Output / Channel
- 30mA
