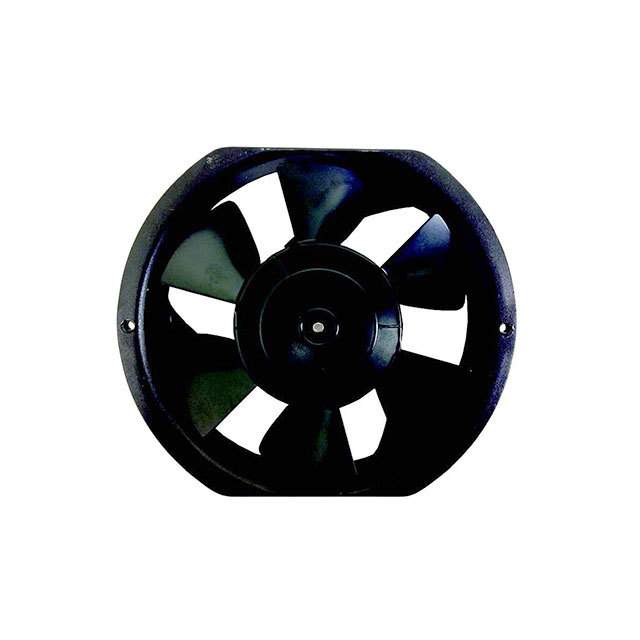

FDD1-17238CBHW42
DC Brushless Fans (BLDC)
- Manufacturer No:
- FDD1-17238CBHW42
- Manufacture:
- Qualtek
- Datasheet:
- FDD1-17238CBHW42
- Description:
- FAN AXIAL 172X38.5MM 12VDC WIRE
In Stock
12 pcs On sales
$69.04
Product Parameter
- Features
- -
- Size / Dimension
- Rectangular/Rounded - 172mm L x 151mm H
- Approvals
- CE, cURus, TUV
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 3.33A
- Termination
- 2 Wire Leads
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
- Bearing Type
- Ball
- RPM
- 4000 RPM
- Power (Watts)
- 39.96W
- Noise
- 64.0 dB(A)
- Voltage Range
- -
- Width
- 38.50mm
- Static Pressure
- 1.122 in H2O (279.5 Pa)
- Series
- HPLC, FDD1-17238
- Voltage - Rated
- 12VDC
- Weight
- 1.9 lbs (861.8 g)
- Lifetime @ Temp.
- 50000 Hrs @ 25°C
- Air Flow
- 310.0 CFM (8.68m³/min)
- Material - Blade
- Steel
- Fan Type
- Tubeaxial
- Material - Frame
- Aluminum
