FDA2-17251NBKT3F

AC Fans

Manufacturer No:: FDA2-17251NBKT3F
Manufacture:: Qualtek
Datasheet:: FDA2-17251NBKT3F

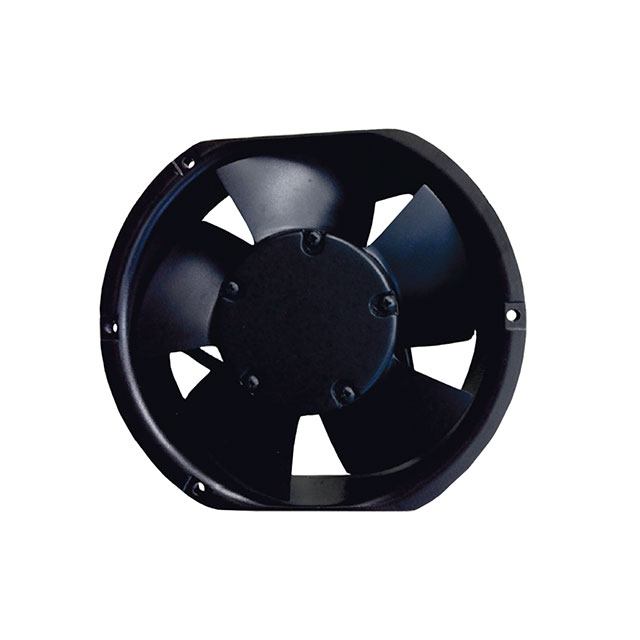

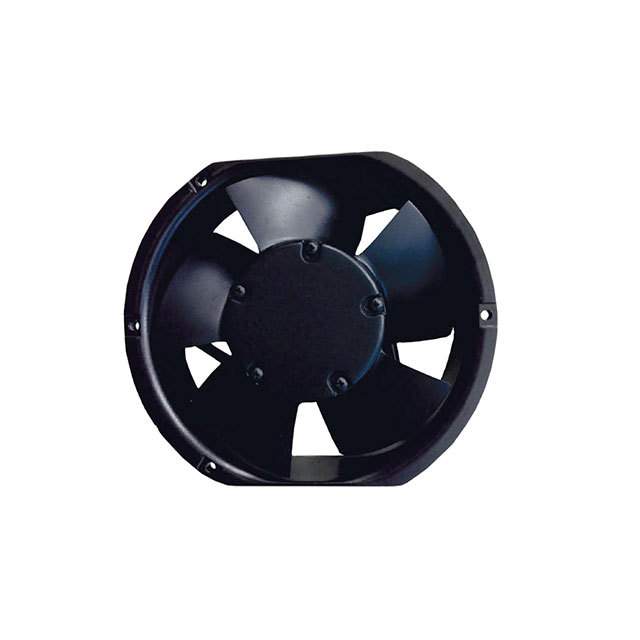

Description:: FAN AXIAL 172X51MM 115VAC TERM

In Stock

233 pcs On sales

$45.4

Product Parameter

Noise: 60.0 dB(A)

Voltage Range: -

Width: 51.00mm

Static Pressure: 0.768 in H2O (191.3 Pa)

Series: HPLC, FDA2-17251

Voltage - Rated: 115VAC

Weight: 1.9 lbs (861.8 g)

Lifetime @ Temp.: 50000 Hrs @ 25°C

Air Flow: 275.0 CFM (7.70m³/min)

Material - Blade: Plastic

Fan Type: Tubeaxial

Material - Frame: Aluminum

Features: -

Size / Dimension: Rectangular/Rounded - 172mm L x 151mm H

Approvals: CE, cURus, TUV

Ingress Protection: -

Part Status: Active

Current Rating (Amps): 0.240A

Termination: 2 Terminals

Operating Temperature: -4 ~ 158°F (-20 ~ 70°C)

Bearing Type: Ball

RPM: 3300 RPM

Power (Watts): 27.00W
