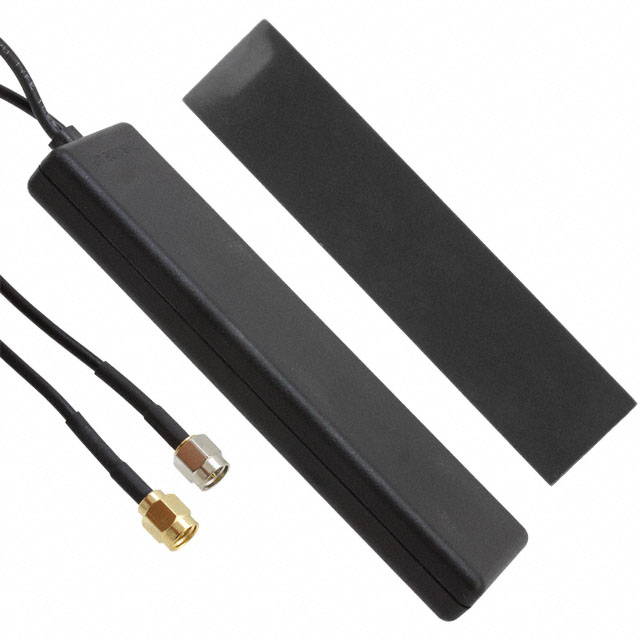

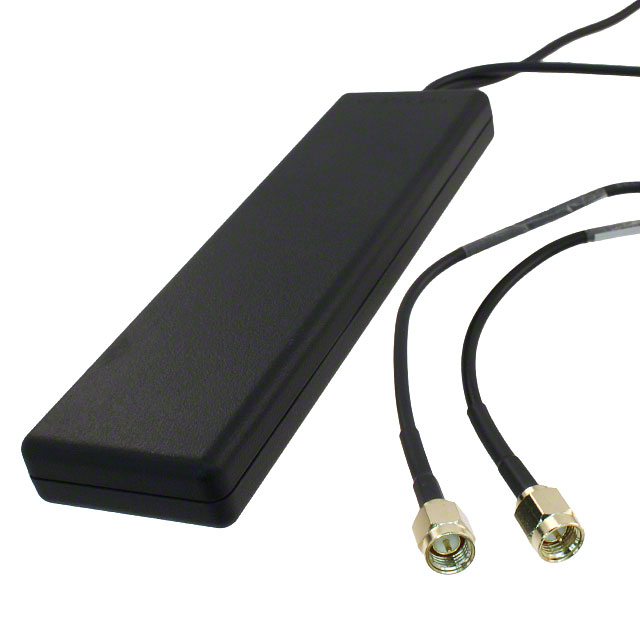

W4120GNSS5000
RF Antennas
- Manufacturer No:
- W4120GNSS5000
- Manufacture:
- PulseLarsen Antennas
- Datasheet:
- W4120GNSS5000
- Description:
- ANT EXTERNAL GNSS GLASS MOUNT S
In Stock
20 pcs On sales
$36.86
Product Parameter
- Antenna Type
- Blade
- Applications
- 3G, Beidou, Galileo, GLONASS, GNSS, GPS
- Height (Max)
- 0.543" (13.80mm)
- Mounting Type
- Adhesive
- Frequency Group
- Wide Band
- Gain
- 1dBi, 1.7dBi, 2.9dBi, 30dBi
- Frequency Range
- 806MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz, 1.71GHz ~ 2.17MHz
- VSWR
- 2, 2.5
- Number of Bands
- 3
- Series
- Low Profile Blade
- Ingress Protection
- IP67
- Features
- Cable - 5m, LNA, Filter
- RF Family/Standard
- Cellular, Navigation
- Part Status
- Active
- Frequency (Center/Band)
- 883MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.94GHz
- Return Loss
- -
- Termination
- SMA Male
