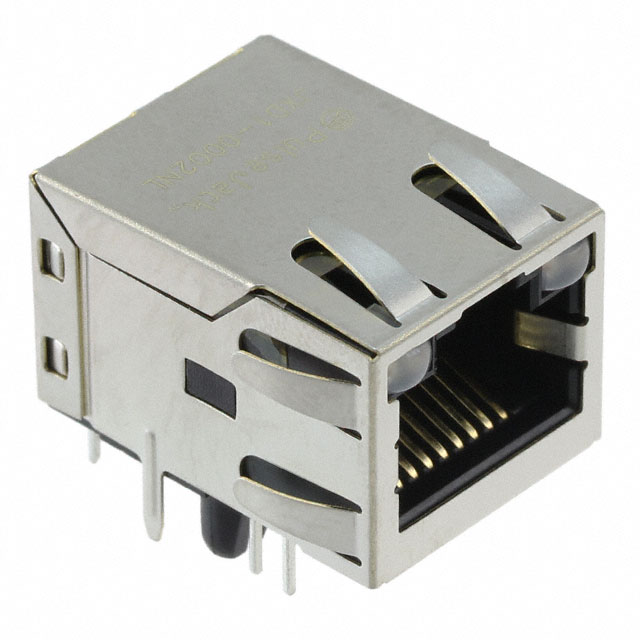

JXD1-0015NL
Modular Connectors - Jacks With Magnetics
- Manufacturer No:
- JXD1-0015NL
- Manufacture:
- Pulse Electronics Network
- Datasheet:
- JXD1-0015NL
- Description:
- CONN,RJ45, 1GD,1:1, YG,EMI,TY
In Stock
2487 pcs On sales
$7.58
Product Parameter
- Orientation
- 90° Angle (Right)
- Height Above Board
- 0.543" (13.80mm)
- Part Status
- Active
- Dielectric Material
- Thermoplastic
- Termination
- Solder
- Operating Temperature
- -40°C ~ 85°C
- Applications
- -
- Contact Finish Thickness
- 30.0µin (0.76µm)
- Mounting Type
- Through Hole
- Number of Cores per Jack
- 8
- Tab Direction
- Up
- Connector Type
- RJ45
- Series
- PULSEJACK™ JXD1
- Contact Finish
- Gold
- Features
- Board Lock
- Number of Rows
- 1
- LED Color
- Yellow - Green
- Number of Ports
- 1
- Packaging
- Tray
- Shield Material
- Brass
- Shielding
- Shielded, EMI Finger
- Contact Material
- Phosphor Bronze
