PMM-3738-WP-R
Microphones
- Manufacturer No:
- PMM-3738-WP-R
- Manufacture:
- PUI Audio, Inc.
- Datasheet:
- PMM-3738-WP-R
- Description:
- MEMS PIEZO MICROPHONE -38 DB 2.1
In Stock
0 pcs On sales
$0
Product Parameter
- Shape
- Rectangular
- Port Location
- Bottom
- Series
- PMM
- Voltage Range
- 1.6V ~ 3.6V
- Ratings
- IP68 - Dust Tight, Waterproof
- Frequency Range
- 100Hz ~ 10kHz
- Direction
- Omnidirectional
- Voltage - Rated
- 2.1V
- Impedance
- 400 Ohms
- Current - Supply
- 150µA
- Packaging
- Digi-Reel®
- Size / Dimension
- 0.148" L x 0.166" W (3.76mm x 2.95mm)
- S/N Ratio
- 61dB
- Output Type
- Analog
- Part Status
- Obsolete
- Sensitivity
- -37dB ±3dB @ 94dB SPL
- Termination
- Solder Pads
- Type
- Piezo MEMS
- Height (Max)
- 0.043" (1.10mm)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
PMM-3738-WP-R Relevant information

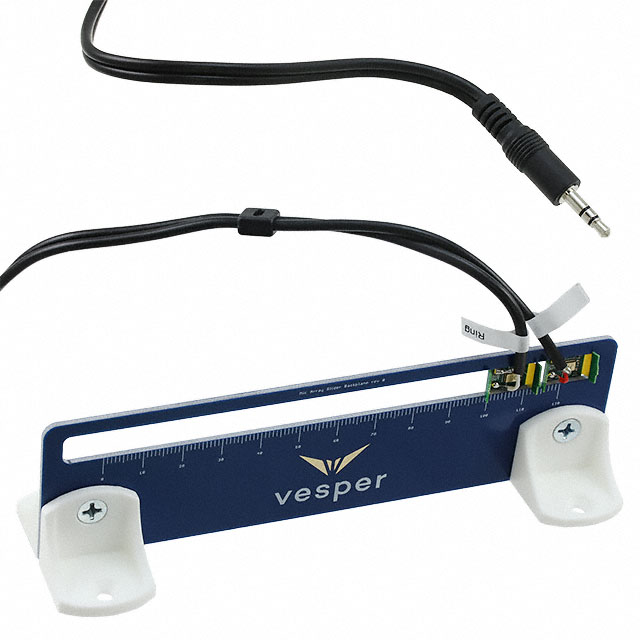

PMM-3738-VM1000-EB-2-R
MEMS PIEZO 2 MICROPHONE EVAL BRD

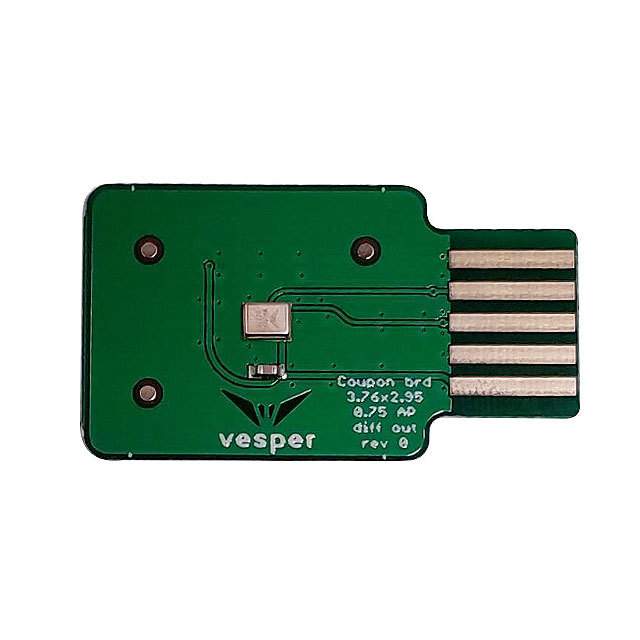

PMM-3738-VM1000-EB-R
MEMS PIEZO MICROPHONE EVALUATION
PMM-3738-VM1000-R
MIC PIEZO MEMS ANLG OMNI -38DB

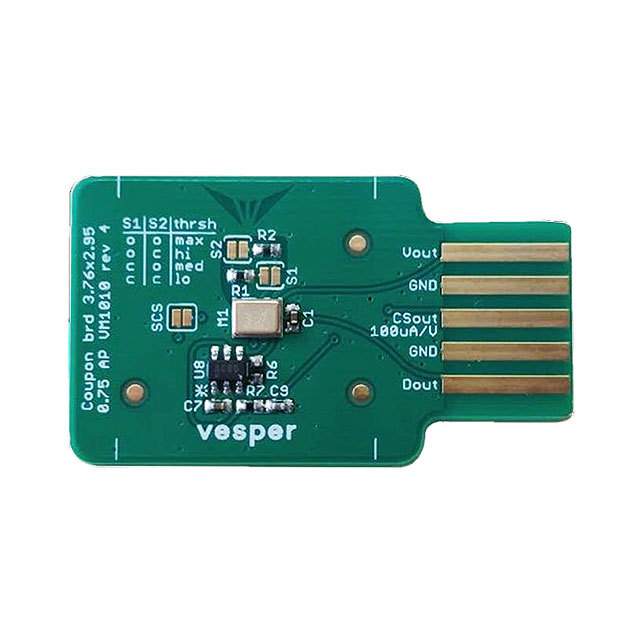

PMM-3738-VM1010-EB-R
MEMS PIEZO MICROPHONE EVALUATION

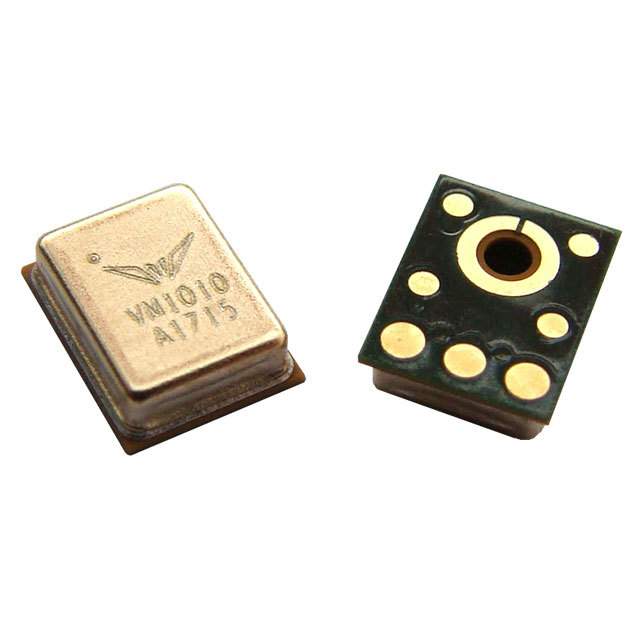

PMM-3738-VM1010-R
MEMS PIEZO MICROPHONE -38 DB 1.8
PMM-3738-WP-2-R
MIC PIEZO MEMS ANLG OMNI -38DB
