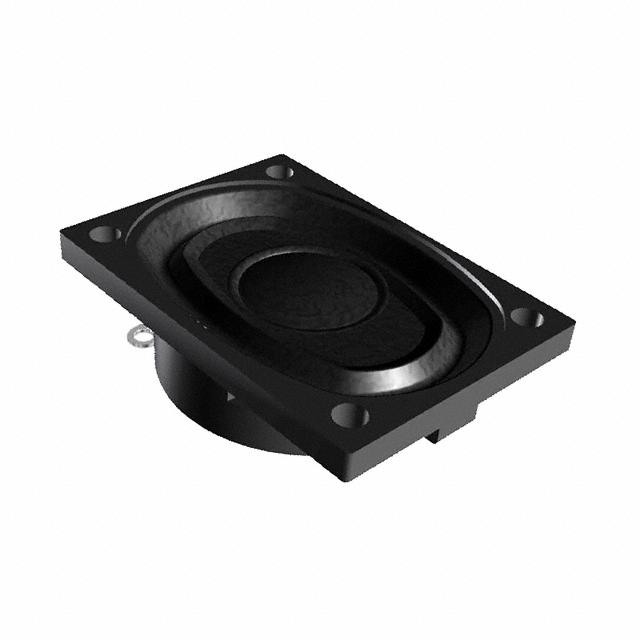

AS04008PO-2-LW152-WR-R

Speakers

Manufacturer No:: AS04008PO-2-LW152-WR-R
Manufacture:: PUI Audio, Inc.
Datasheet:: AS04008PO-2-LW152-WR-R
Description:: SPEAKER 8OHM 1W TOP PORT 84DB

In Stock

420 pcs On sales

$4.53

Product Parameter

Power - Rated: 1W

Type: General Purpose

Frequency Range: 450Hz ~ 20kHz

Shape: Rectangular

Material - Cone: Paper, Coated

Series: AS

Efficiency - dBA: 84.00

Ratings: -

Size / Dimension: 1.575" L x 1.114" W (40.00mm x 28.30mm)

Impedance: 8 Ohms

Efficiency - Type: Sound Pressure Level (SPL)

Packaging: Tray

Material - Magnet: Nd-Fe-B

Technology: Magnetic

Ingress Protection: Water Resistant

Part Status: Active

Efficiency - Testing: 1W/500mm

Power - Max: 2W

Height - Seated (Max): 0.472" (12.00mm)

Termination: Wire Leads

Frequency - Self Resonant: 450Hz

Port Location: Top
