499-87-204-10-003101
Rectangular Connectors - Headers, Receptacles, Female Sockets
- Manufacturer No:
- 499-87-204-10-003101
- Manufacture:
- Preci-Dip
- Datasheet:
- 499-87-204-10-003101
- Description:

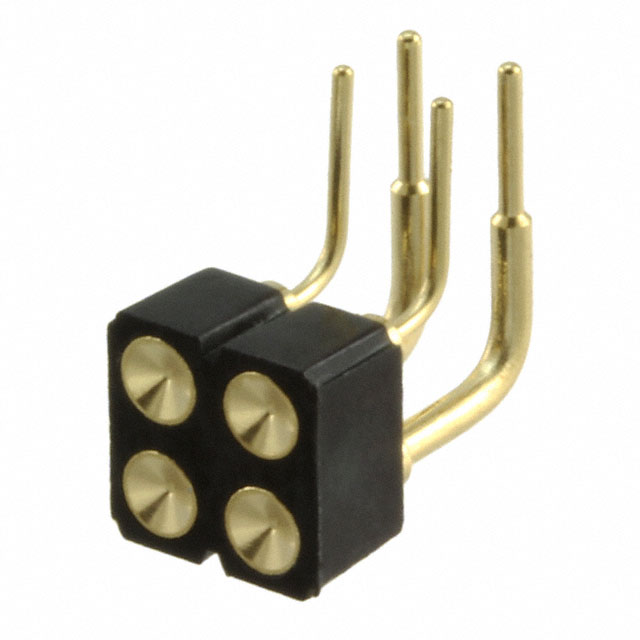

- CONN SOCKET 4P 0.1 GOLD PCB R/A
In Stock
0 pcs On sales
$0.31
Product Parameter
- Features
- -
- Voltage Rating
- -
- Mated Stacking Heights
- -
- Packaging
- Bulk
- Contact Material
- Beryllium Copper
- Contact Finish - Mating
- Gold
- Part Status
- Active
- Insulation Color
- Black
- Number of Positions Loaded
- All
- Termination
- Solder
- Insulation Height
- 0.200" (5.08mm)
- Material Flammability Rating
- UL94 V-0
- Applications
- -
- Ingress Protection
- -
- Contact Finish Thickness - Post
- -
- Contact Type
- Female Socket
- Insulation Material
- Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
- Contact Finish Thickness - Mating
- Flash
- Contact Shape
- Circular
- Number of Positions
- 4
- Mounting Type
- Through Hole, Right Angle
- Row Spacing - Mating
- 0.100" (2.54mm)
- Connector Type
- Socket
- Contact Finish - Post
- Tin
- Fastening Type
- Push-Pull
- Contact Length - Post
- 0.126" (3.20mm)
- Style
- Board to Board
- Number of Rows
- 2
- Current Rating (Amps)
- 3A
- Series
- 499
- Pitch - Mating
- 0.100" (2.54mm)
- Operating Temperature
- -55°C ~ 125°C
