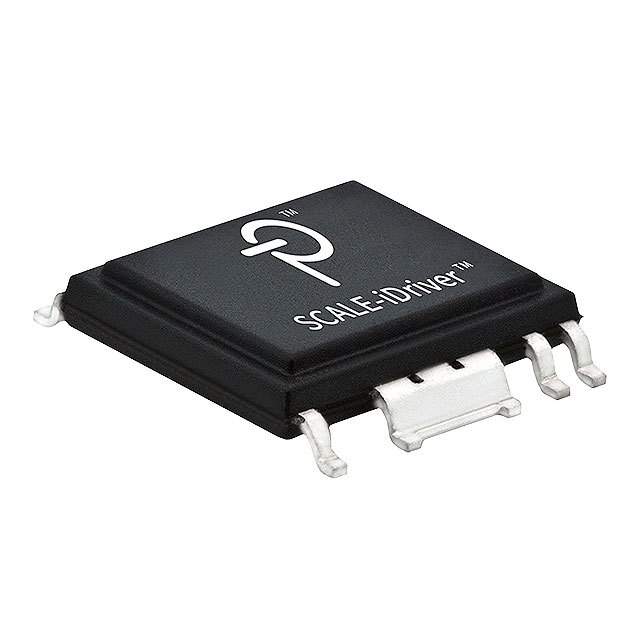

SID1183K-TL
PMIC - Gate Drivers
- Manufacturer No:
- SID1183K-TL
- Manufacture:
- Power Integrations
- Package:
- 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
- Datasheet:
- SID1183K-TL
- Description:
- IGBT FET GATE DVR 8A 1700V ESOP
In Stock
1487 pcs On sales
$0
Product Parameter
- Mounting Type
- Surface Mount
- Package / Case
- 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
- Voltage - Supply
- 4.75V ~ 5.25V
- Number of Drivers
- 2
- Driven Configuration
- High-Side or Low-Side
- Operating Temperature
- -40°C ~ 125°C (TJ)
- Series
- SCALE™-1
- Rise / Fall Time (Typ)
- 465ns, 460ns
- Gate Type
- IGBT, N-Channel MOSFET
- Supplier Device Package
- eSOP-R16B
- Packaging
- Digi-Reel®
- Logic Voltage - VIL, VIH
- 0.5V, 3.3V
- Input Type
- Inverting
- Current - Peak Output (Source, Sink)
- 8A, 48A
- Part Status
- Active
- Channel Type
- Single
