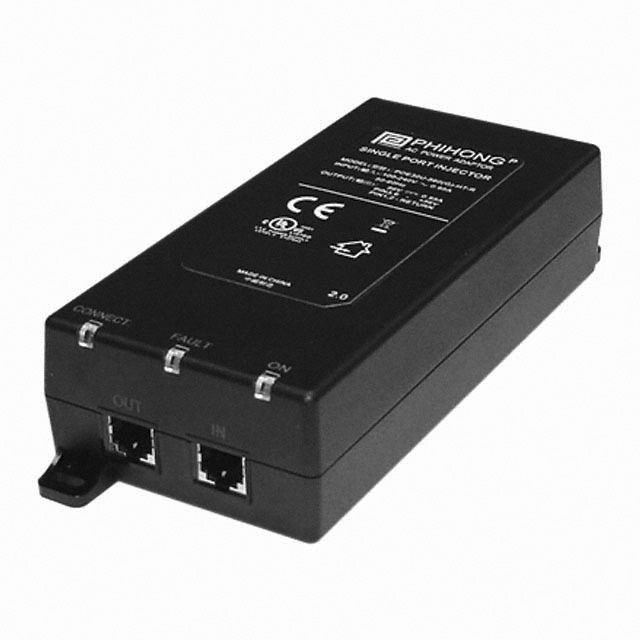

POE33U-1AT
Power over Ethernet (PoE)
- Manufacturer No:
- POE33U-1AT
- Manufacture:
- PHIHONG USA
- Datasheet:
- POE33U-1AT
- Description:
- POE INJECTOR 33.6W 56V BRACKET
In Stock
13 pcs On sales
$185
Product Parameter
- Efficiency
- 70%
- Part Status
- Active
- Mounting Type
- Bracket Mount
- Input Connector
- Terminal Block (Power), RJ45 (Data)
- Note
- -
- Number of Ports
- 1
- Type
- Midspan Injector
- Voltage - Input
- 90 ~ 264 VAC
- Series
- -
- Current - Output
- 600mA
- Weight
- 6.2 lbs (2.8 kg)
- Output Connector
- RJ45 (Data, Power)
- Features
- IP67, OCP, OVP, SCP
- Size / Dimension
- 9.93" L x 6.93" W x 3.07" H (252.1mm x 176.0mm x 78.0mm)
- Approvals
- CE, cULus
- Voltage - Output
- 56V
- Data Rate
- 10/100/1000 Mbps
- Operating Temperature
- -40°C ~ 60°C
- Compliance
- IEEE802.3at
- Power (Watts) - Per Port
- 33.6W
