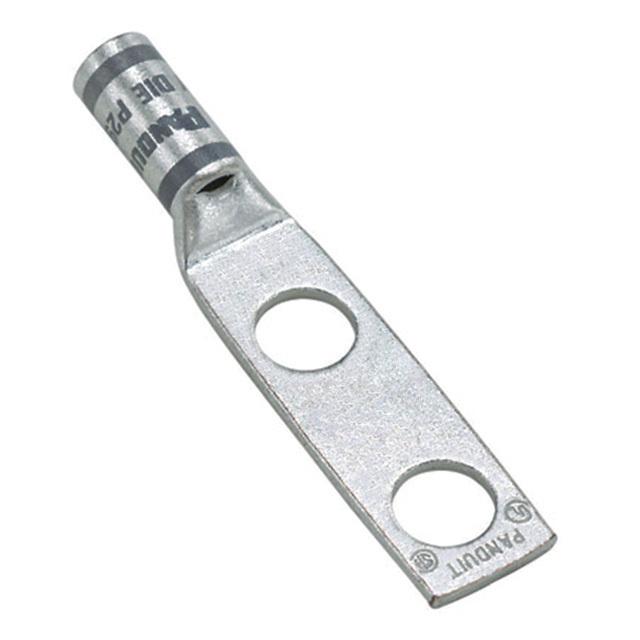

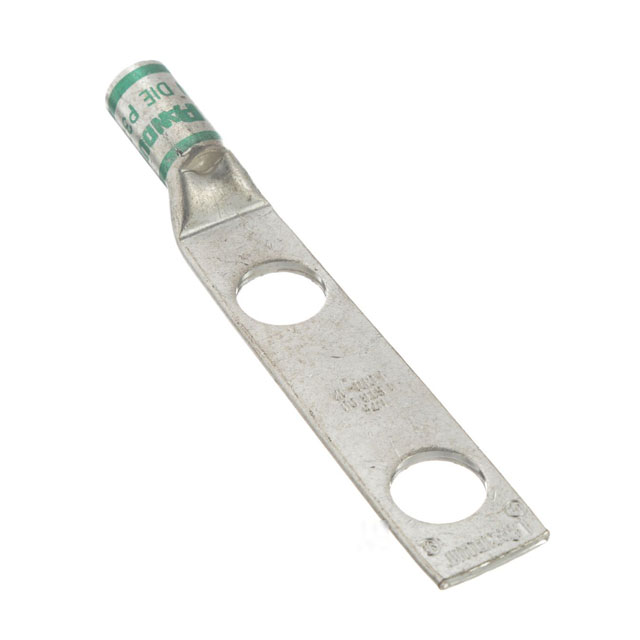

LCD10-10AF-L
Terminals - Rectangular Connectors
- Manufacturer No:
- LCD10-10AF-L
- Manufacture:
- Panduit Corp
- Datasheet:
- LCD10-10AF-L
- Description:
- CONN TERM RECT TONG 10-14AWG #10
In Stock
347 pcs On sales
$9.49
Product Parameter
- Packaging
- Bulk
- Length - Overall
- -
- Insulation
- Non-Insulated
- Diameter - Ring ID
- 0.200" (5.08mm)
- Wire Gauge
- 10-14 AWG
- Width - Outer Edges
- 0.380" (9.65mm)
- Part Status
- Active
- Diameter - Barrel ID
- 0.130" (3.30mm)
- Termination
- Crimp, Barrel
- Diameter - Barrel OD
- 0.220" (5.59mm)
- Mounting Type
- Free Hanging (In-Line), Right Angle
- Stud/Tab Size
- 10 Stud
- Tab Thickness
- 0.060" (1.52mm)
- Terminal Type
- Rectangular Tongue
- Color
- -
- Contact Finish
- Electro-Tin
- Series
- Pan-Lug®
- Terminal Style
- Two Stud Holes
- Features
- -
- Contact Material
- Copper
