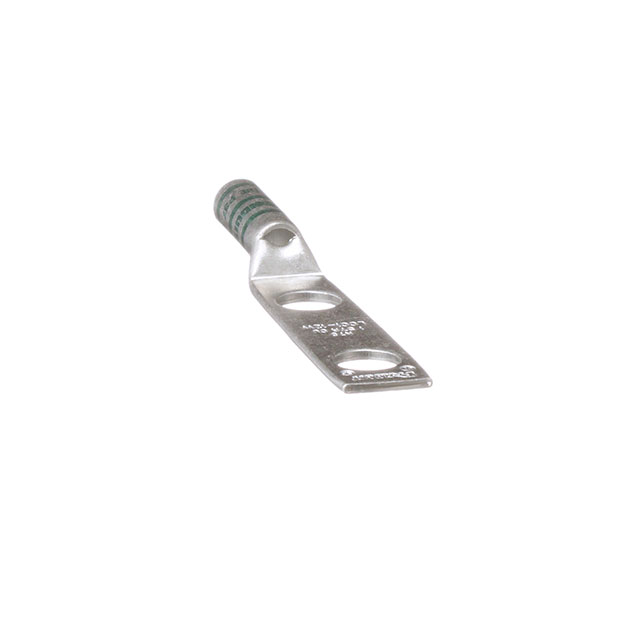

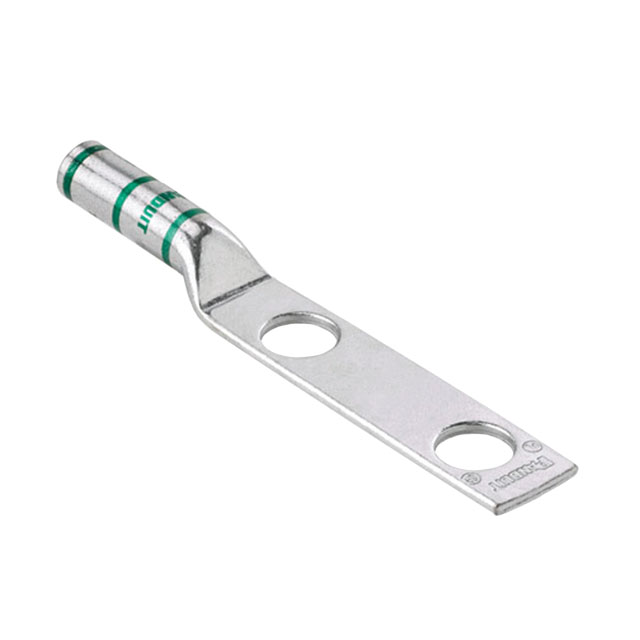

LCC1/0-56DH-X
Terminals - Rectangular Connectors
- Manufacturer No:
- LCC1/0-56DH-X
- Manufacture:
- Panduit Corp
- Datasheet:
- LCC1/0-56DH-X
- Description:
- CONN TERM RECT TONG 1/0AWG #5/16
In Stock
0 pcs On sales
$13.98
Product Parameter
- Wire Gauge
- 1/0 AWG
- Width - Outer Edges
- 0.760" (19.30mm)
- Part Status
- Active
- Diameter - Barrel ID
- 0.390" (9.91mm)
- Termination
- Crimp, Barrel
- Diameter - Barrel OD
- 0.520" (13.21mm)
- Mounting Type
- Free Hanging (In-Line), 45° Angle
- Stud/Tab Size
- 5/16 Stud
- Tab Thickness
- 0.120" (3.05mm)
- Terminal Type
- Rectangular Tongue
- Color
- Pink
- Contact Finish
- Electro-Tin
- Series
- Pan-Lug®
- Terminal Style
- Two Stud Holes
- Features
- -
- Contact Material
- Copper
- Packaging
- Bulk
- Length - Overall
- -
- Insulation
- Non-Insulated
- Diameter - Ring ID
- 0.340" (8.64mm)
