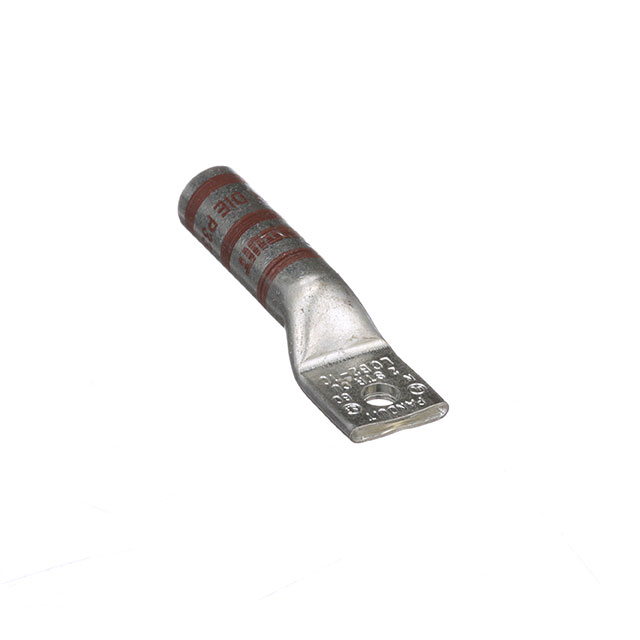

LCB2-56F-Q
Terminals - Rectangular Connectors
- Manufacturer No:
- LCB2-56F-Q
- Manufacture:
- Panduit Corp
- Datasheet:
- LCB2-56F-Q
- Description:
- CONN TERM RECT TONG 2 AWG #5/16
In Stock
0 pcs On sales
$7.07
Product Parameter
- Stud/Tab Size
- 5/16 Stud
- Tab Thickness
- 0.100" (2.54mm)
- Terminal Type
- Rectangular Tongue
- Color
- Brown
- Contact Finish
- Electro-Tin
- Series
- Pan-Lug®
- Terminal Style
- Single Stud Hole
- Features
- -
- Contact Material
- Copper
- Packaging
- Bulk
- Length - Overall
- -
- Insulation
- Non-Insulated
- Diameter - Ring ID
- 0.340" (8.64mm)
- Wire Gauge
- 2 AWG
- Width - Outer Edges
- 0.660" (16.76mm)
- Part Status
- Active
- Diameter - Barrel ID
- 0.310" (7.87mm)
- Termination
- Crimp, Barrel
- Diameter - Barrel OD
- 0.420" (10.67mm)
- Mounting Type
- Free Hanging (In-Line), Right Angle
