EV14-P47B-L
Terminals - Wire Pin Connectors
- Manufacturer No:
- EV14-P47B-L
- Manufacture:
- Panduit Corp
- Datasheet:
- EV14-P47B-L
- Description:
- STRONGHOLD PIN TERMINAL, VINYL I
In Stock
4575 pcs On sales
$0.31
Product Parameter
- Insulation
- Insulated
- Length - Termination
- -
- Wire Gauge
- 14-16 AWG
- Material - Insulation
- Vinyl
- Part Status
- Active
- Termination
- Crimp
- Length - Pin
- 0.490" (12.45mm)
- Pin Diameter
- Circular - 0.070" (1.78mm) Dia
- Contact Finish
- Tin
- Contact Material
- Copper
- Color
- Blue
- Length - Overall
- 0.970" (24.64mm)
- Series
- StrongHold™
- Insulation Diameter
- 0.170" (4.32mm)
- Features
- Brazed Seam
- Diameter - Barrel ID
- -
- Packaging
- Bulk
- Diameter - Barrel OD
- -
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
EV14-P47B-L Relevant information

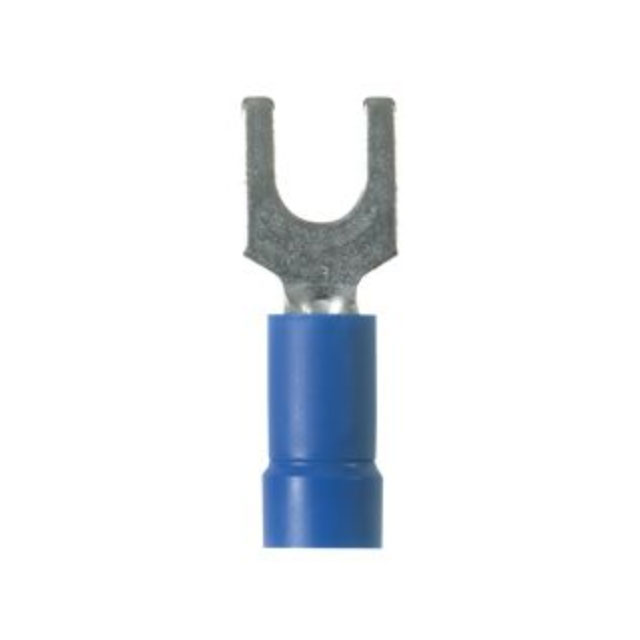

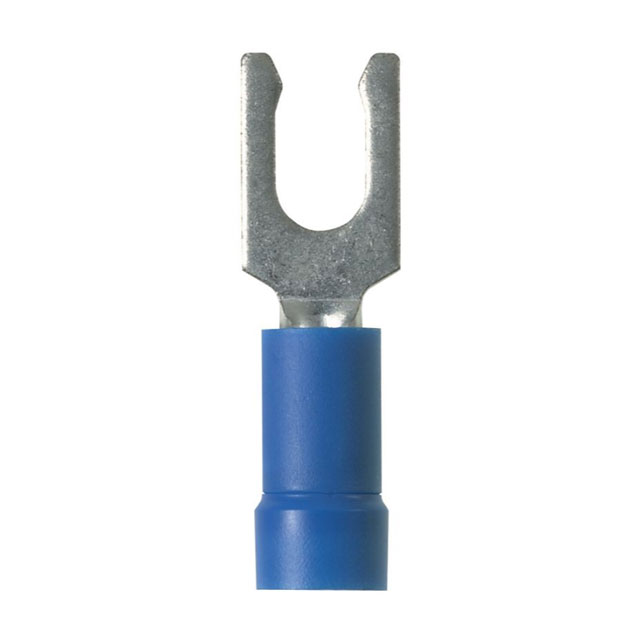

EV14-10FB-L
STRONGHOLD FORK TERMINAL, VINYL
EV14-10FB-Q
STRONGHOLD FORK TERMINAL, VINYL
EV14-10FNB-Q
STRONGHOLD NARROW FORK TERMINAL,
EV14-10LFB-L
STRONGHOLD LOCKING FORK TERMINAL
EV14-10LFB-Q
STRONGHOLD LOCKING FORK TERMINAL

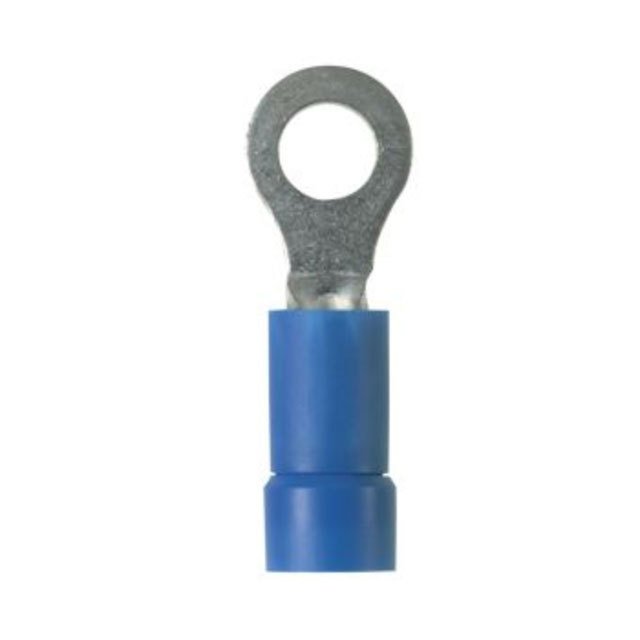

EV14-10RB-L
