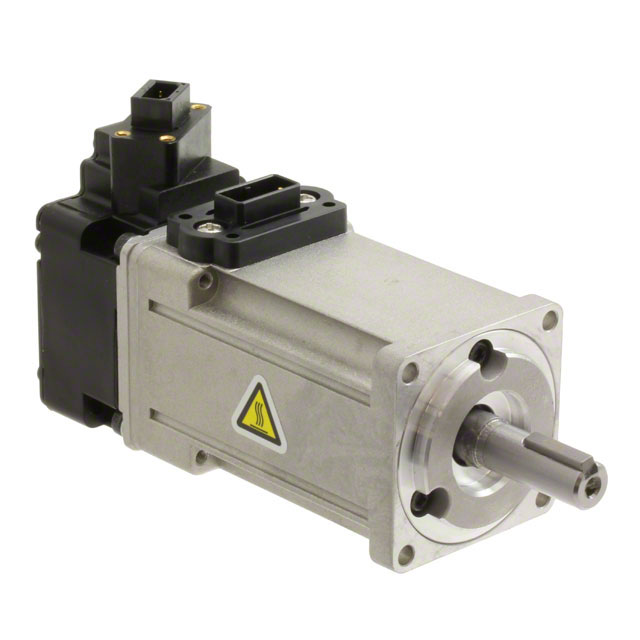

MSME302G1G
Motors - AC, DC
- Manufacturer No:
- MSME302G1G
- Manufacture:
- Panasonic Industrial Automation Sales
- Datasheet:
- MSME302G1G
- Description:
- SERVOMOTOR 3000 RPM 200VAC
In Stock
4 pcs On sales
$1259.7
Product Parameter
- Encoder Type
- Incremental
- Power - Rated
- 3kW
- Voltage - Rated
- 200VAC
- RPM
- 3000 RPM
- Diameter - Shaft
- 0.866" (22.00mm)
- Type
- AC Motor
- Size / Dimension
- Square - 4.724" x 4.724" (120.00mm x 120.00mm)
- Series
- MINAS A5
- Termination Style
- Connector
- Weight
- 18 lbs (8.2 kg)
- Gear Reduction Ratio
- -
- Features
- Key, Oil Seal
- Mounting Hole Spacing
- 5.709" (145.00mm)
- Function
- Servomotor
- Operating Temperature
- 0°C ~ 40°C
- Approvals
- CE, CSA, cULus, TUV, UL
- Length - Shaft and Bearing
- 2.165" (55.00mm)
- Motor Type
- -
- Torque - Rated (oz-in / mNm)
- 1352 / 9550
- Part Status
- Active
- Torque - Max Momentary (oz-in / mNm)
- 4050 / 28600
