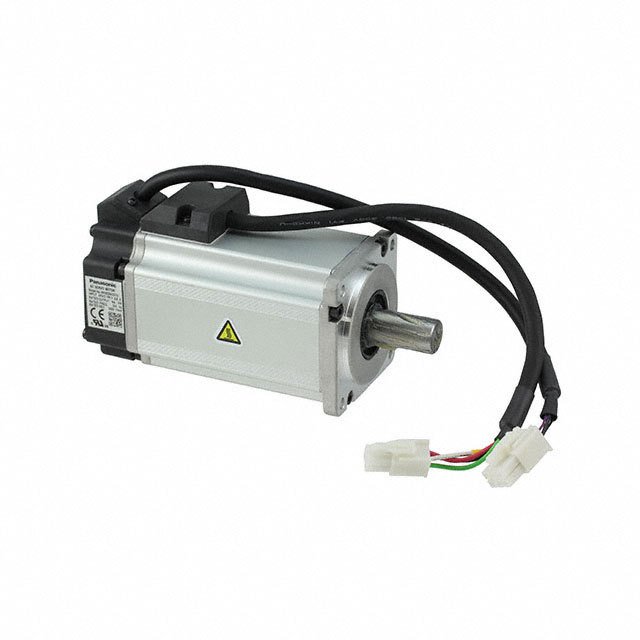

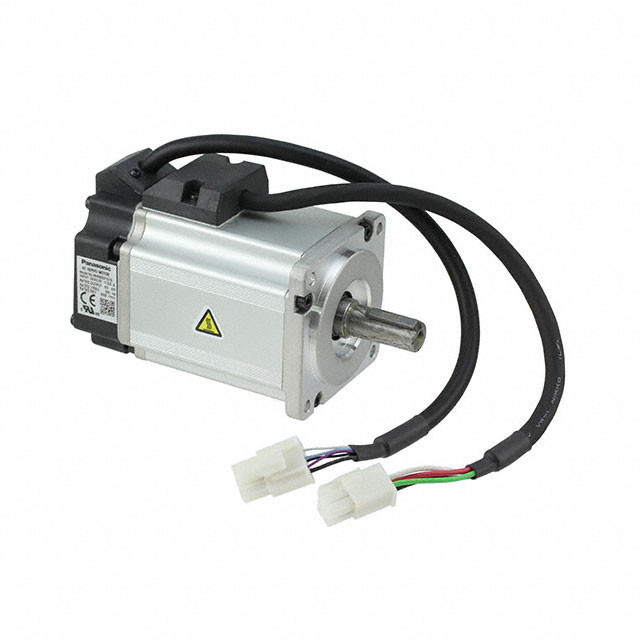

MHMD042G1S
Motors - AC, DC
- Manufacturer No:
- MHMD042G1S
- Manufacture:
- Panasonic Industrial Automation Sales
- Datasheet:
- MHMD042G1S
- Description:
- SERVOMOTOR 3000 RPM 200VAC
In Stock
13 pcs On sales
$555.75
Product Parameter
- Power - Rated
- 400W
- Voltage - Rated
- 200VAC
- RPM
- 3000 RPM
- Diameter - Shaft
- 0.551" (14.00mm)
- Type
- AC Motor
- Size / Dimension
- Square - 2.362" x 2.362" (60.00mm x 60.00mm)
- Series
- MINAS A5
- Termination Style
- Wire Leads
- Weight
- 3.1 lbs (1.4 kg)
- Gear Reduction Ratio
- -
- Features
- Key
- Mounting Hole Spacing
- 2.756" (70.00mm)
- Function
- Servomotor
- Operating Temperature
- 0°C ~ 40°C
- Approvals
- CE, CSA, cULus, TUV, UL
- Length - Shaft and Bearing
- 1.181" (30.00mm)
- Motor Type
- -
- Torque - Rated (oz-in / mNm)
- 184.1 / 1300
- Part Status
- Active
- Torque - Max Momentary (oz-in / mNm)
- 538.1 / 3800
- Encoder Type
- Incremental
