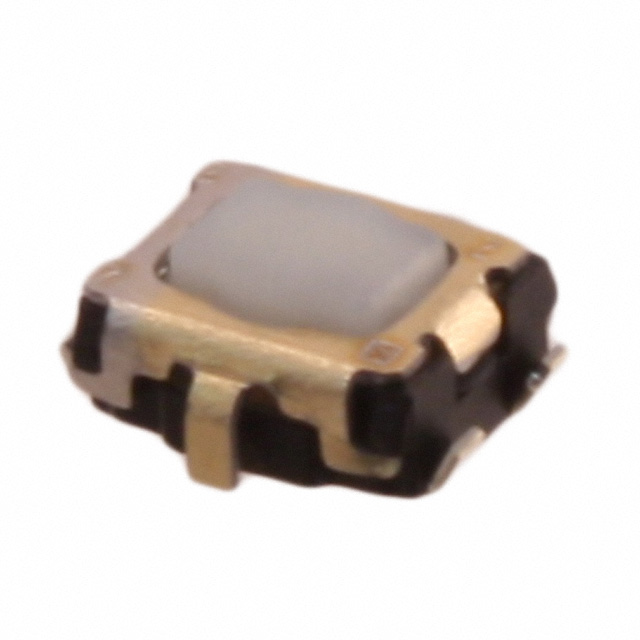

EVP-AWBD4A
Tactile Switches
- Manufacturer No:
- EVP-AWBD4A
- Manufacture:
- Panasonic Electronic Components
- Datasheet:
- EVP-AWBD4A
- Description:
- 3.0MM X 2.0MM / 1.6N / 0.13MM ST
In Stock
10999 pcs On sales
$0.3
Product Parameter
- Mechanical Life
- 500,000 Cycles
- Actuator Height off PCB, Vertical
- 0.60mm
- Operating Force
- 160gf
- Series
- EVPAW
- Switch Function
- Off-Mom
- Circuit
- SPST-NO
- Actuator Material
- -
- Outline
- 3.00mm x 2.00mm
- Termination Style
- SMD (SMT) Tab
- Features
- -
- Ingress Protection
- IP67 - Dust Tight, Waterproof
- Packaging
- Cut Tape (CT)
- Actuator Orientation
- Top Actuated
- Part Status
- Active
- Operating Temperature
- -40°C ~ 85°C
- Illumination
- Non-Illuminated
- Contact Rating @ Voltage
- 0.02A @ 15VDC
- Actuator Type
- Standard
- Illumination Type, Color
- -
- Mounting Type
- Surface Mount
- Actuator Length, Right Angle
- -
- Switch Travel
- 0.13mm
- Illumination Voltage (Nominal)
- -
